Must be shipped via Freight! See our Freight Terms and Conditions HERE
Includes Final Filter

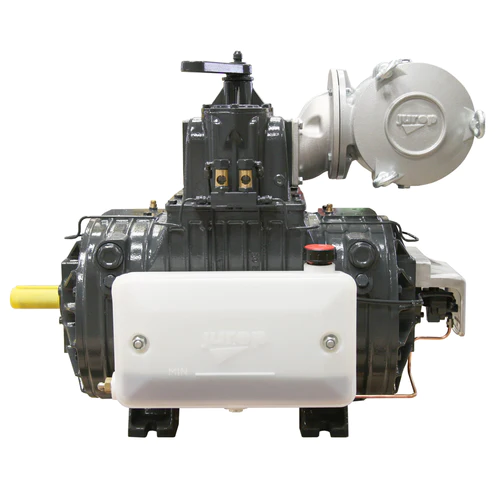

Jurop XLC420 Pump Specifications:
The Jurop XLC420 is a liquid cooled, sliding vane vacuum pump with forced lubrication and copper oil piping. This vacuum pump features aluminium inlet/outlet conveyors and built-in vacuum with pressure changeover valve.
• Version XLC: 1 3/8" (1.375 in) Shaft Size
• Pump Drive Rotation:
Counter Clockwise (CCW)• 4" Connections
• Oil Tank Capacity - 4.23 Quart
• Liquid cooled
• RPM Range: 900 - 1100
• Maximum Air Flow: 425CFM @ free air, 324CFM @ 18 inHg (inches of Mercury)
• Maximum Intermittent Vacuum: 27"
• Maximum Intermittent Pressure: 30PSI
• Net Weight: 462 LBS
•
Recommended Oil ISO 150
XLC420 Tech Sheet viewable HERE
