Jurop XR260 Pump Specifications:

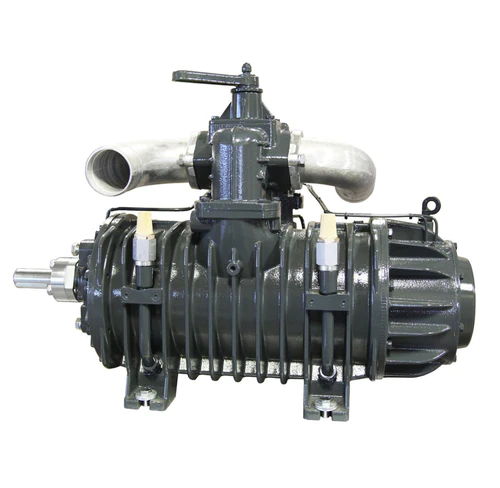

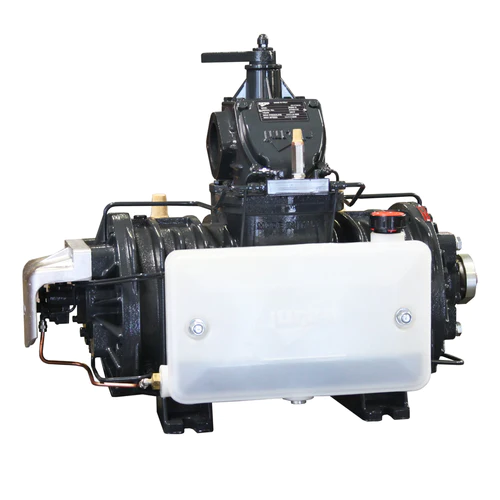

The Jurop XR260 is a ballast cooled, sliding vane vacuum pump with forced lubrication and copper oil piping. This vacuum pump features aluminium inlet/outlet conveyors and built-in vacuum with pressure changeover valve.
• Version XR: 1 3/8" (1.375 in) Shaft Size
• Pump Drive Rotation:
Counter Clockwise (CCW)• 3" Connections
• Oil Tank Capacity - 2.44 Quart
• Injection-Air (Ballast Port) cooled
• RPM Range: 900 - 1200
• Maximum Air Flow: 363CFM @ free air, 304CFM @ 18 inHg (inches of Mercury)
• Maximum Intermittent Vacuum: 18"
• Maximum Intermittent Pressure: 25PSI
• Net Weight: 397 LBS
•
Recommended Oil ISO 150
XR260 Tech Sheet viewable HERE
