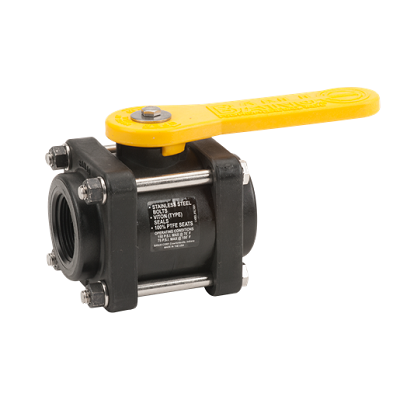

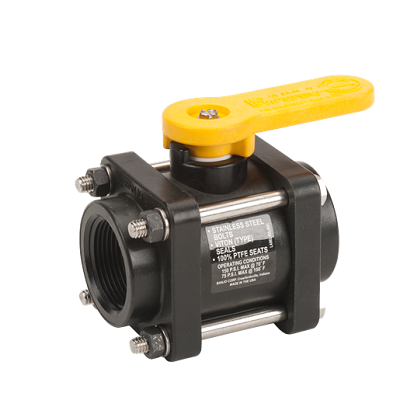

1-1/4" Banjo 4-Bolt Poly Ball Valve (Standard OR Full Port)
1-1/4" banjo 4-bolt poly ball valve available in standard or full port.
Details:
- • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
- • FKM seals
- • Precision molded polypropylene is reinforced with fiberglass for additional strength
- • PTFE self-lubricating stem bushings and seats cannot stick or bind
- • Self-aligning ball moves freely against the PTFE seats for smooth operation, valve opens and closes with very little pressure on the handle
- • Stainless steel bolts
| Specifications |
Standard Port |
Full Port |
| Maximum PSI |
300 PSI |
225 |
| Downloadable Files |

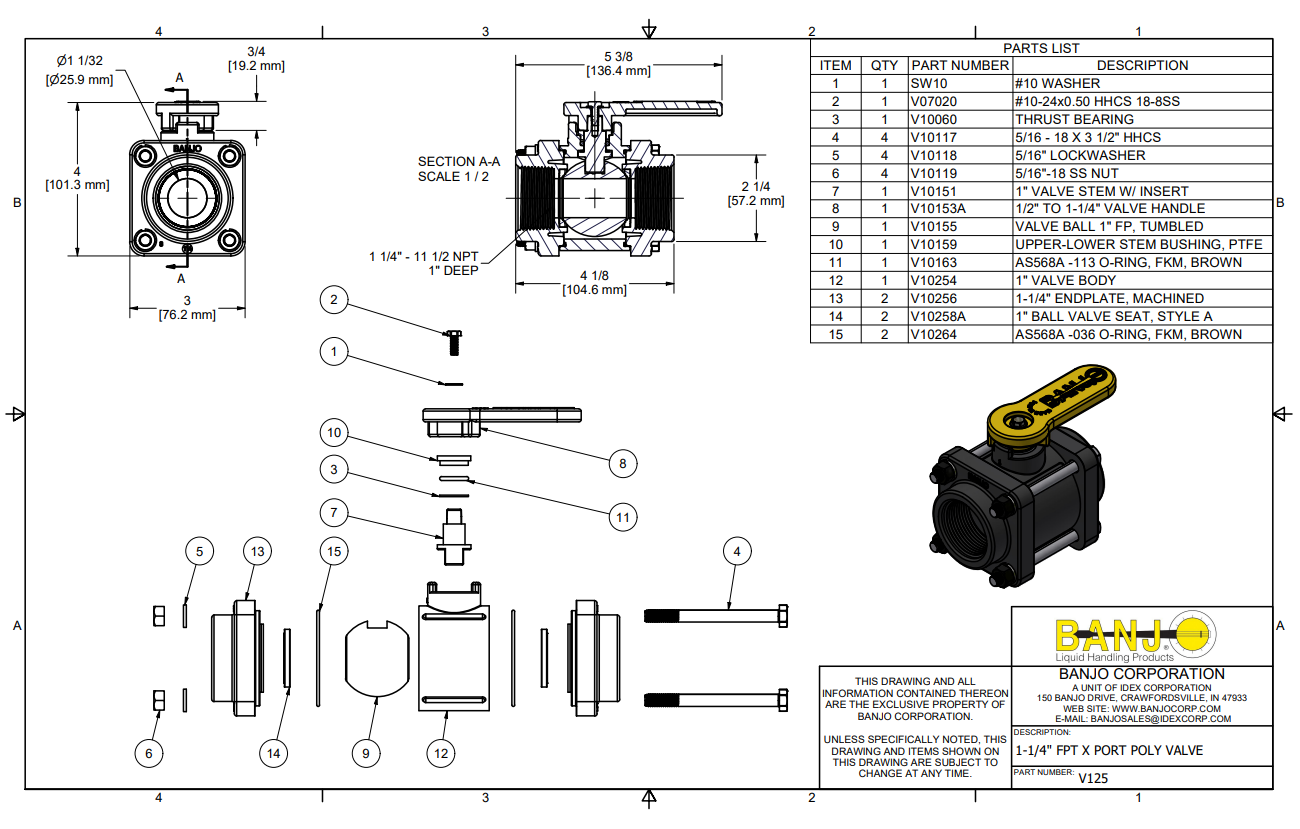

Spec Sheet |

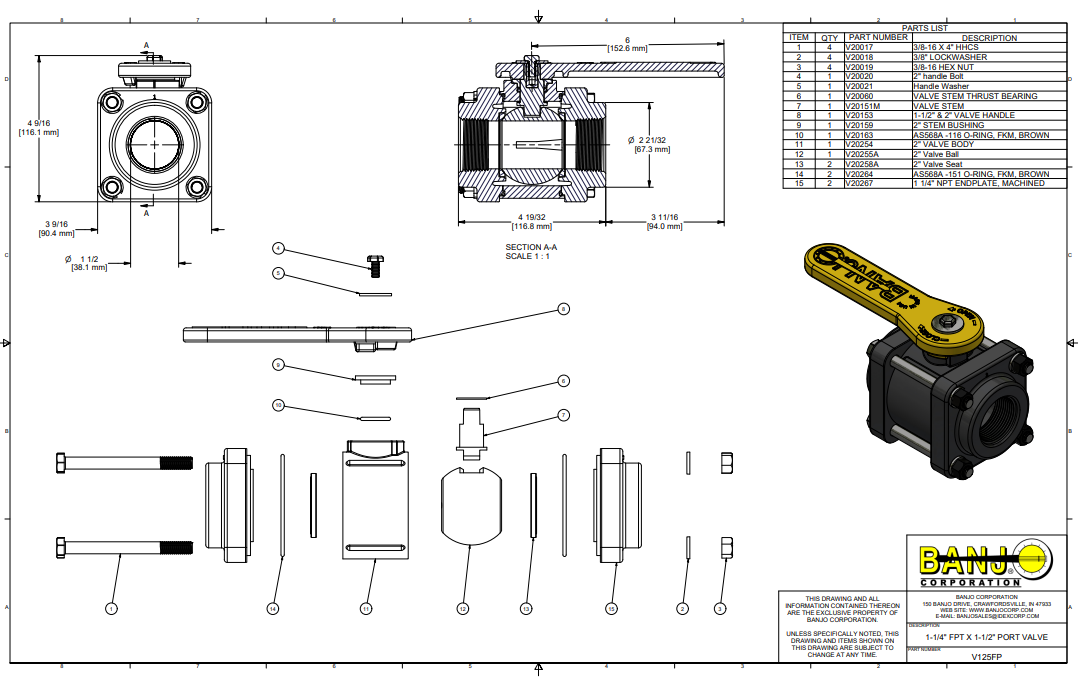

Spec Sheet |
