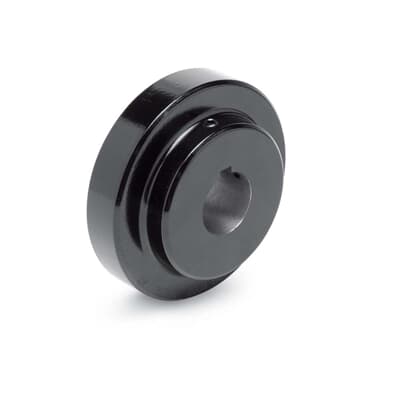

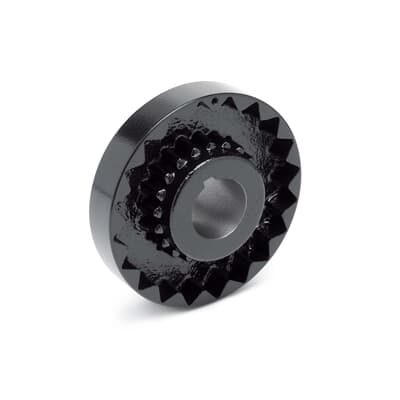

#10 Coupling Flange with 1-1/2" Bore - 3/8" Keyway
Baldor's elastomeric #10 coupling flange with 1-1/2" bore and 3/8" keyway.
| Specifications: | |
|---|---|
| Coupling Type | Elastomeric |
| Coupling Style | Sleeve |
| Coupling Size | 10 |
| Shaft Spacing | Close Coupled |
| Coupling Component | Flange |
| Shaft Attachment |
Bored To Size |
| Flange Material | Cast Iron |
| Rated Torque | 11350 in·lb |
| Maximum Speed | 3600 r/min |
| Horsepower Per 100 Rating | 18 Hp |
| Angular Misalignment | 1° |
| Parallel Misalignment | 0.025 in |
| Axial Misalignment | 0.25 in |
| Shaft Spacer | CLOSE-COUPLED |
| Bore Diameter | Actual 1.5 in |
| Bore Fit | Clearance |
| Bore Tolerance Standard | AGMA 9002 |
| Bore Length | 2.72 in |
| Outside Diameter |
7.5 in |
| Product Net Width | 8.75 in |
