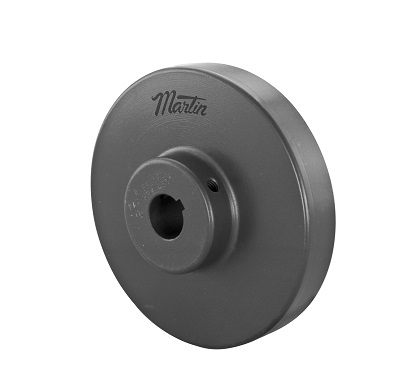

#10 Coupling Flange with 1-7/8" Bore - 1/2" Keyway
Martin QUADRA-FLEX ® is a proven design which offers long life, torsional flexibility, ease of installation, and withstands misalignment, shock, and vibration.
| Specifications: | |
|---|---|
| Coupling Size | 10 |
| Bore Type | Finished Bore |
| Material | Cast Iron |
| Outside Diameter | 7.5000 in. |
| Length Thru Bore | 2.7190 in. |
| Finished Bore Size | 1.8750 in. |
| Max Bore Size |
3.3750 in. |
| Key Way Size | 1/2 X 1/4 in. |
Every effort is made to keep all dimensions and styles current, however from time to time; it is necessary because of manufacturing changes to alter product dimensionally. If any stock product dimension or style shown is critical to your application please consult us for confirmation.
