223khz Ardy Kit - Receiver, Case, (3) APT-12 Transmitters


223khz Ardy Kit - Receiver, Case, (3) APT-12 Transmitters
Images/ARDY-KIT.png Images/AR-1-2.jpg Images/ARDY-KIT-4.jpg Images/ARDY-KIT-2.jpeg
Item Number: ARDY-KIT
Unit Price:
$660.00
Quantity


*** Limited quantities available ***

This item is part of our Closeout Bin Sale - once these items are gone, they're gone for good. Don't miss your chance, grab yours today!

223khz Ardy Kit - Receiver, Case, (3) APT-12 Transmitters

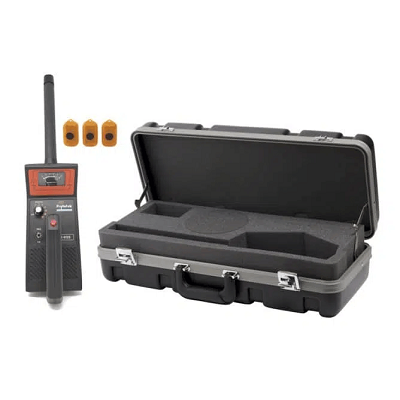

Kit includes the 223 KiloHertz Ardy Analog Receiver, a Hard Case, and (3) APT-12 Flushable Transmitters.

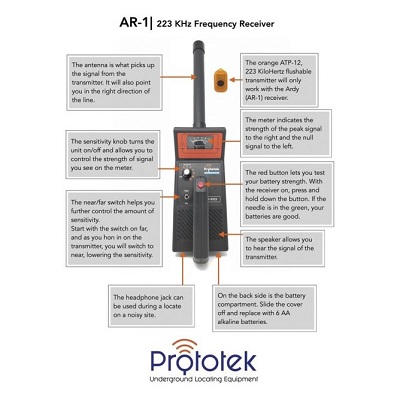

Ardy Receiver:

The Ardy Analog Receiver is simple to use and great for locating nonmetallic septic tanks and pipes. It is ONLY compatible with the ATP-12, 223 KiloHertz flushable transmitters.

  • • Made in the USA
  • • Easy to use controls allow you to manage the amount of signal you see on the meter
  • • Headphone jack for noisy sites
  • • Red battery tester button will help you know when its time to change out the batteries
  • • To calculate depth multiply the distance in inches between the front and back null by .7
  • • Perfect for PVC and non-metallic locating

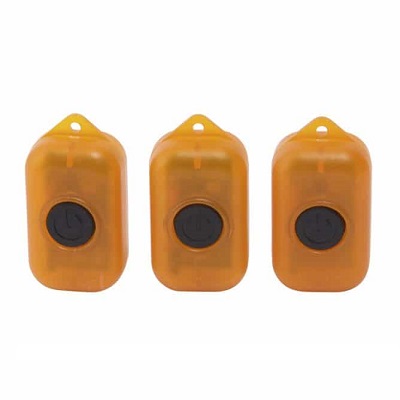

ATP-12 Flushable Transmitter:

The ATP-12 transmits using the 223 KiloHertz frequency. It is the only option when locating with the Ardy receiver in nonmetallic lines and septic tanks. This 223 kHz frequency will NOT transmit through any metal pipe.

  • • Made in the USA
  • • Black On/Off push button
  • • Floats for easy retrieval
  • • Flashing Orange LED indicates that the sonde is transmitting
  • • Flashing Red LED indicates when the Transmitter is on its final flush
  • • Solid Red LED means the batteries are dead and it is time for a new Transmitter
  • • Batteries are not replaceable
  • • Eyelet makes it easy to attach a light-weight string for better control

Analog Hard Case

The Analog Hard Case is made of high density Polyethylene for durability. This is a great accessory to help protect your receiver from the elements.


Specifications Ardy Receiver Locator ATP-12 Flushable Transmitter
Frequency 223 KiloHertz 223 KiloHertz
Dimensions 20” L x 4” W x 4-3/4” H 2-1/4” L x 1-3/16” W x 1” H
Weight 2 lbs. 0.8oz
Line size
3 inches and up
Range
12 +/- feet in nonmetallic
Signal Tone
Beeping
Battery Life
10 +/- hours (Batteries are not replaceable)
On/Off
Push Button
Best Use
Flushed
Receiver Type
Ardy Receiver Only
Power Source 6 AA Alkaline batteries
Compatible With ATP-12, 223 KiloHertz Frequency Transmitter
