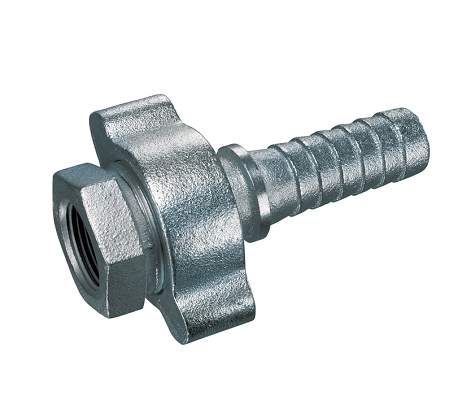

Ground Joint with Wing Nut and Female Spud


Ground Joint with Wing Nut and Female Spud
Item Number: GJ  050
Size/Color
Quantity


Ground Joint with Wing Nut and Female Spud

Designed for use in medium to high-pressure applications using steam, air, and fluids.

Details:

  • • Ductile iron plated
  • • ASTM A536, Grade 65/45/12
  • • Type: Hose Stem with Wing Nut and Female Spud
  • • Designed for use in medium to high-pressure applications using steam, air, and fluids
  • • The metal-to-metal design provides for optimum sealing at high temperatures
  • • Used in conjunction with interlocking bolt clamps

Specifications: Water Steam Air Max Service Temp
1/2" 600 psi 250 psi 600 psi 232ºC, 450ºF
3/4" 600 psi 250 psi 600 psi 232ºC, 450ºF
1" 600 psi 250 psi 400 psi 232ºC, 450ºF
1-1/4" 600 psi 250 psi 400 psi 232ºC, 450ºF
1-1/2" 600 psi 250 psi 350 psi 232ºC, 450ºF
2" 600 psi 250 psi 300 psi 232ºC, 450ºF
2-1/2" 450 psi 250 psi 300 psi 232ºC, 450ºF
3" 450 psi 250 psi 300 psi 232ºC, 450ºF
4" 450 psi 250 psi 300 psi 232ºC, 450ºF
