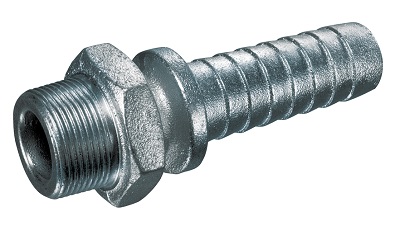

Male NPT Stem for Ground Joint - MNPT x Hose Barb Hydraulic Fitting


Male NPT Stem for Ground Joint - MNPT x Hose Barb Hydraulic Fitting
Item Number: GJM  050
Size/Color
Quantity


  • • Designed for use in medium to high-pressure applications using steam, air, and fluids
  • • The metal-to-metal design provides for optimum sealing at high temperatures
  • • Used in conjunction with interlocking bolt clamps
  • • Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps
  • • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds. Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.



Specifications
Size Water Steam Air Weight
1/2" 600 PSI 250 PSI 600 PSI 0.17 lb
3/4" 600 PSI 250 PSI 600 PSI 0.33 lb
1" 600 PSI 250 PSI 400 PSI 0.55 lb
1-1/2" 600 PSI 250 PSI 350 PSI 1.79 lb
2" 600 PSI 250 PSI 300 PSI 2.65 lb
2-1/2" 450 PSI 250 PSI 300 PSI 4.83 lb
4" 450 PSI 250 PSI 300 PSI 11.40 lb
