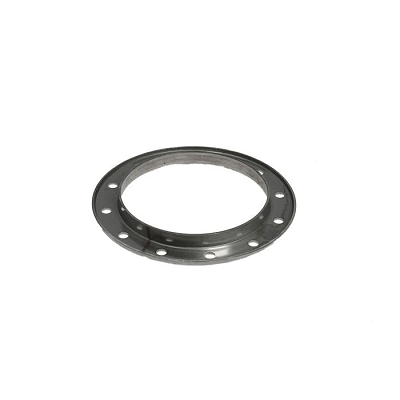

6" Stainless Steel Flued TTMA Weldable Flange


6
Item Number: SS20167A
Unit Price:
$56.09
Quantity


  • • 6" flange
  • • Crafted out of weldable stainless steel
  • • Flued/channeled design
  • • 12 bolt holes
  • • TTMA flange style



Please note: TTMA and ANSI flanges are NOT interchangeable - please see table below.



TTMA Flange Sizing

Nominal Pipe Size Flange Outer Diameter (OD) Diameter of Bolt Circle Number of Bolts
3" 5-5/8" 4-7/8" 8
4" 6-5/8" 5-7/8" 8
6" 8-7/8" 8-1/8" 12
