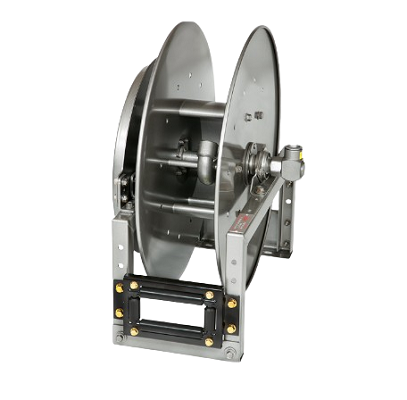

800 Series Spring Rewind Hose Reel for 100' of 3/4" ID
Hannay's 800 Series Spring Rewind hose reel for 100ft of 3/4inch ID hose. For use in waste oil evacuation, air, water.
Details:
- • Non-sparking ratchet assembly
- • Declutching arbor to prevent damage from reverse winding
- • Standard inlet: 90° balanced pressure swivel joint, 1" female NPT threads
- • Standard outlet: 1" female NPT threads
- • Standard pressures to 2,000 psi (138 bar)
- • Standard fluid temperatures from -40° F to +250 °F (-40° C to +121° C)
- • 4-way roller assembly
- • SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left
* Please specify roller position when adding to cart, use the roller position diagram below for reference *

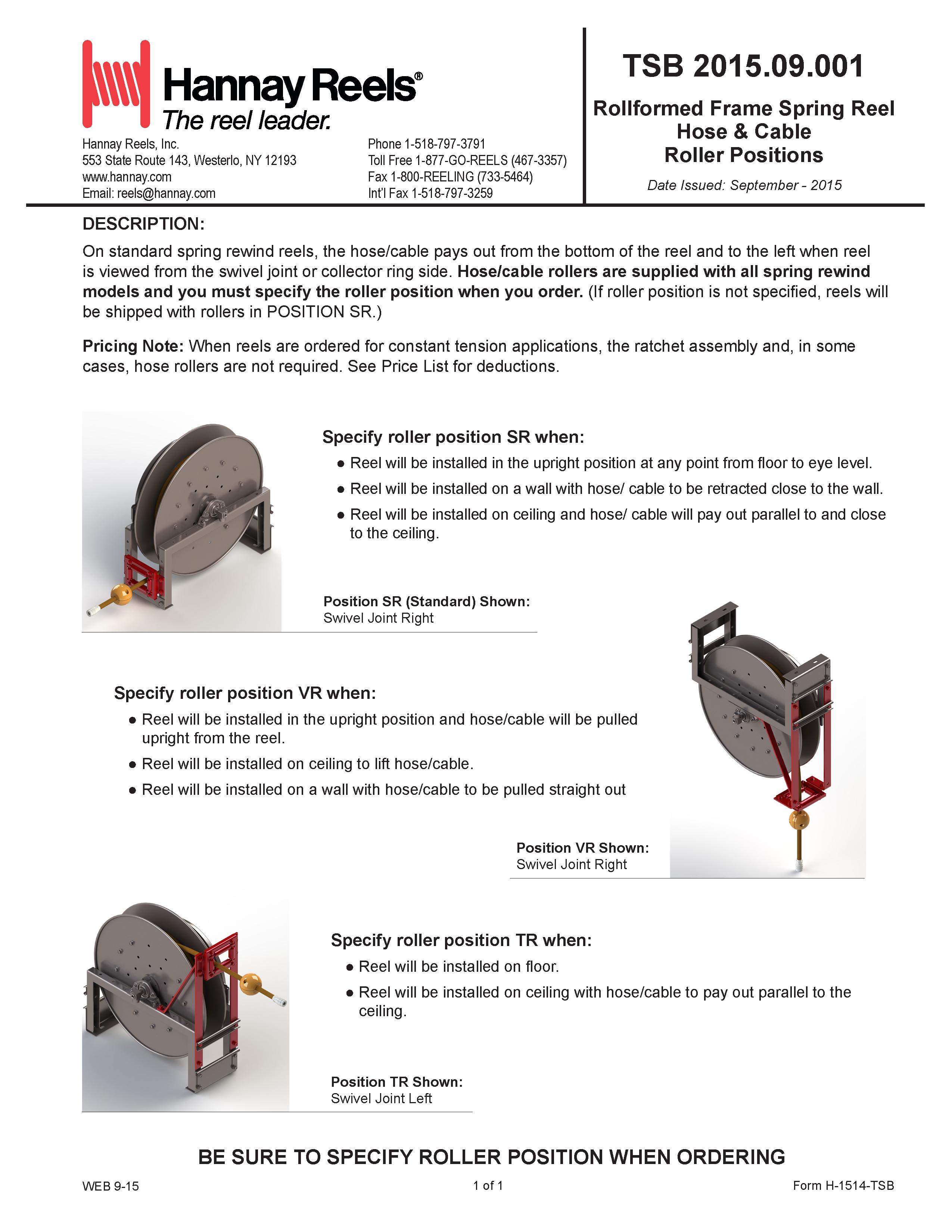

Roller Position Diagram:
