90 Degree Metric Female Swivel Cone 24 Degree Seat with O-Ring, Din Light
Female swivel cone with 0-ring, 90° metric solid bent tube.
Details:
- • Type: 90° Metric Female 24° Cone with O-Ring - Light DIN 3865
- • Industry Standards/Certifications: DIN 3865

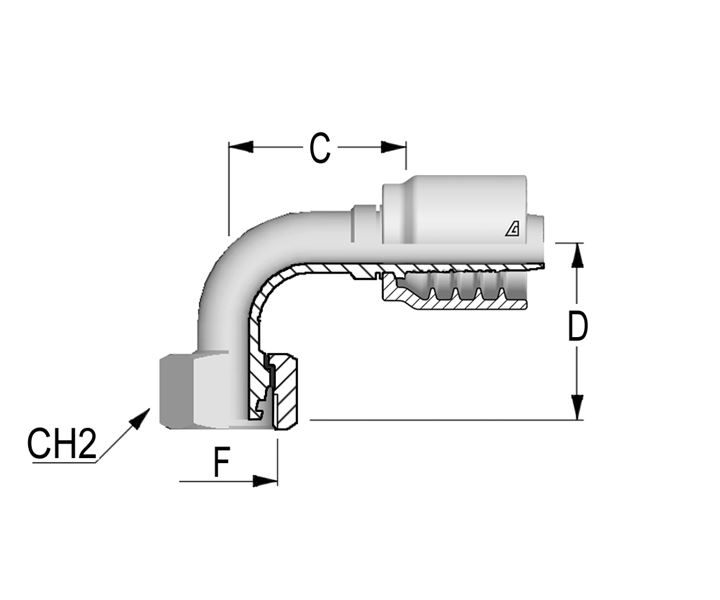

| Specifications: |
Dash Size |
F Thread Dia x Pitch |
Tube OD |
C Cut-Off Factor |
D Drop |
CH2 |
Bend Angle |
Cone Angle |
1/4" I.D. Hose,
14 F Thread |
04 |
14x1.5 |
8 mm |
28.3 mm |
32.5 mm |
17 mm |
90º |
24º |
1/4" I.D. Hose,
16 F Thread |
04 |
16x1.5 |
10 mm |
28.3 mm |
32.5 mm |
19 mm |
90º |
24º |
3/8" I.D. Hose,
18 F Thread |
06 |
18x1.5 |
12 mm |
32.8 mm |
39.0 mm |
22 mm |
90º |
24º |
1/2" I.D. Hose,
22 F Thread |
08 |
22x1.5 |
15 mm |
39.8 mm |
40.5 mm |
27 mm |
90º |
24º |
