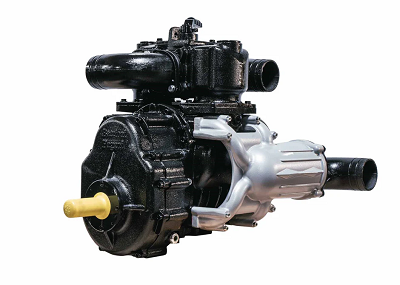

Battioni BLW 210 Blower Pump - Counterclockwise


Battioni BLW 210 Blower Pump - Counterclockwise
Item Number: BLW210
Unit Price:
$5,185.00
Quantity


Must be shipped via Freight! See our Freight Terms and Conditions HERE

Battioni BLW 210 Blower Pump Specifications:

The BLW series blower pump is a versatile and reliable solution for various air compression and decompression needs. Paired with a watertight tank that can be put under vacuum or pressure, it offers efficient and safe liquid loading, unloading, and distribution capabilities. With three adjustable bends, one connected to the tank, another to the atmosphere, and the third to the ballast cooling system, this pump can be customized to suit your specific application. By using the reversing gear inside the pump, you can easily create the necessary vacuum or pressure inside the tank. The pump operates by using two suitably shaped rotors that counter-rotate in relation to each other, effectively trapping the incoming air in a chamber formed by the body and the rotors, and discharging it to the output. Trust the BLW series blower pump for superior performance and functionality.


Specification
Max rate of flow (CFM) 798
 Max speed (RPM)

1200

Max vacuum - Bar (Kw) -0.88 (36)
Max pressure ABS - Bar 2.0
Power @ max pressure (Kw) 40
Net weight - Kg (lbs) 225 (496.04 lbs)
 Dimensions (pump length is from front of shaft) - In (L x W x H) 26.41" x 21.22" x 25.55"



View the information manual HERE

View the user instruction and maintenance manual HERE

View the technical data sheet HERE


Vacuum Pump Oil Pump Manufacturer
ISO 32 Masport (Winter)
ISO 68 Battioni, NVE, Masport (All Season)
ISO 100 Moro, Masport (Summer)
ISO 150 Jurop, Fruitland, NVE
