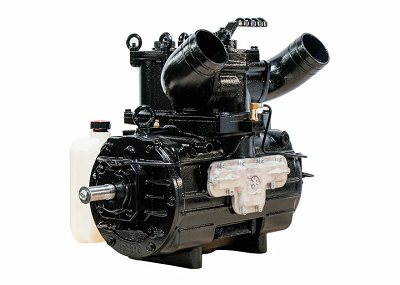

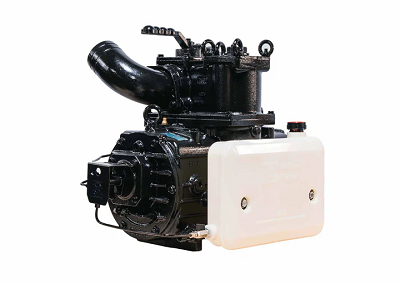

Battioni KPS490, 477 CFM
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE

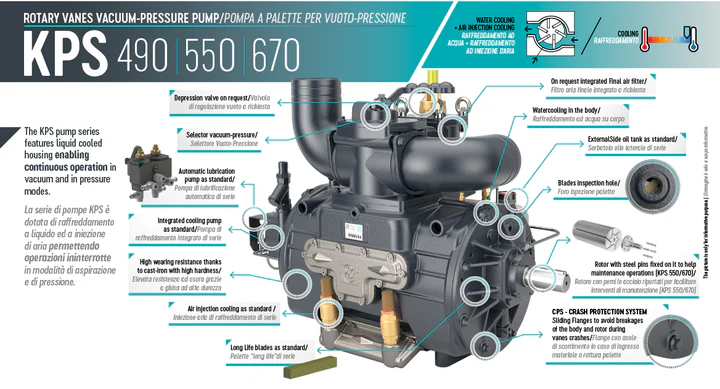

The KPS pump series boasts a unique liquid-cooled housing that ensures uninterrupted operation in both vacuum and pressure modes. Designed for demanding applications that require prolonged and consistent performance, such as oil fields, combined vacuum trucks, and industrial settings, the KPS pump series delivers exceptional reliability and efficiency. Whether you're a professional user or contractor, the KPS series is the perfect choice for your toughest pumping needs. With its cutting-edge technology and rugged construction, you can trust the KPS pump series to provide reliable and long-lasting operation, even under extreme conditions.
Details:
| Specifications: | |
|---|---|
| Max rate of flow, (CFM) | 477 |
| Operating speed, (rpm) | 1400 RPM |
| Max working pressure, (PSI) | 36 |
| Max vacuum %, (InHg) | 28.5" |
| Power @ max vacuum, (Hp) | 25.5 |
| Net weight, (lbs.) | 452 lbs. |
|
Dimensions, In (LxWxH) *PUMP LENGTH IS FROM FRONT OF SHAFT* |
32.89" x 19.05" x 24.27" |
| Oil Tank Capacity, (l) | 6.5 |
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
