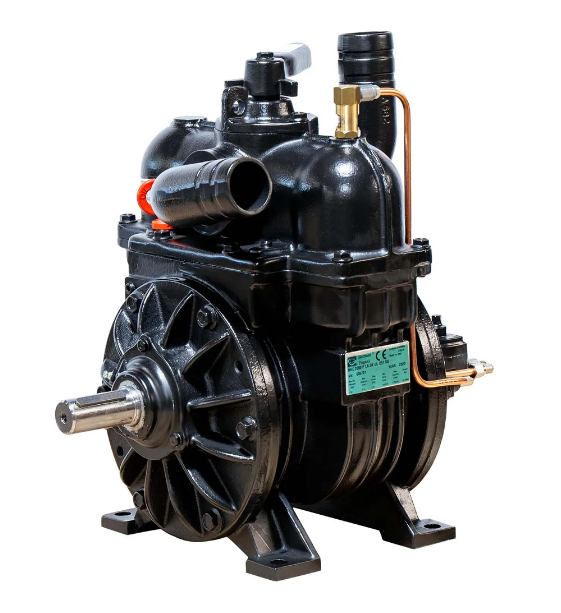

The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.
Its simple and practical design made the MEC pumps the product of reference for agricultural and municipalities septic applications.
STANDARD FEATURES
Forced lubrication, 4-ways valve, non-return check valve
Available hoses connections: Ψ 45 mm / Ψ 60 mm / G 2
Thread for Overpressure valve: G 11/4
|
Max Rate of Flow |
(CFM) |
97 |
|
Max rpm |
(rpm) |
1400 |
|
Max Working Pressure |
Bar (PSI) |
2.5 (36) |
|
Max Vacuum % |
InHg |
91% (27") |
|
Power @ max vacuum |
kW (hp) |
11 (14.7) |
|
Net Weight |
Kg (lbs.) |
65 (144) |
