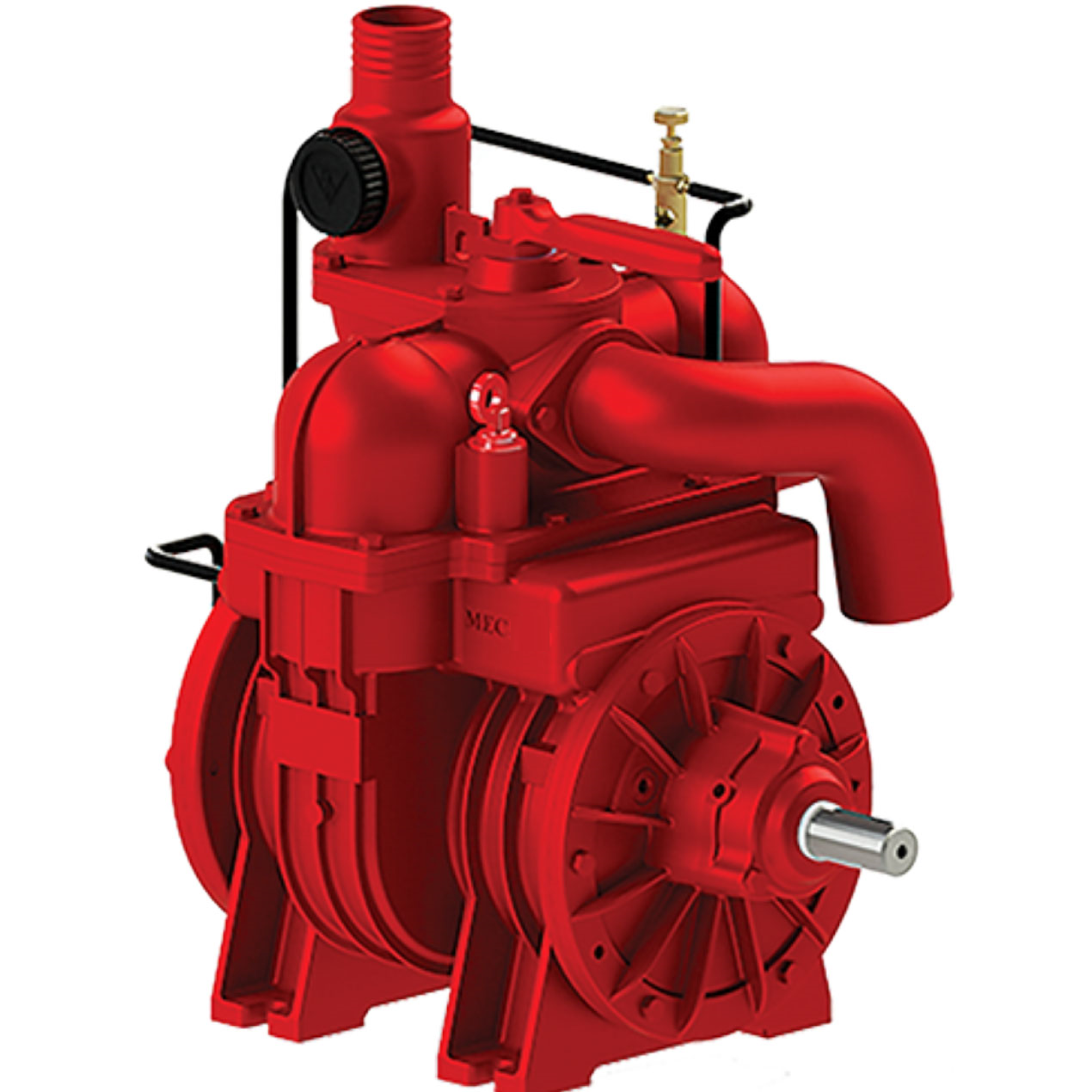

Battioni MEC6500, 247 CFM (Clockwise OR Counterclockwise)
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE
The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.
Details:
| Specifications: | |
|---|---|
| Max rate of flow, (CFM) | 247 |
| Max rpm, (rpm) | 1400 |
| Max working pressure, Bar (PSI) | 2.5 (36) |
| Max vacuum %, InHg | 94% (28") |
| Power @ max vacuum, kW (hp) | 12.5 (16.7) |
| Net weight, Kg (lbs.) | 129 (285) |
| Dimensions, In (LxWxH) *PUMP LENGTH IS FROM FRONT OF SHAFT* |
23.81" x 15.35" x 20.63" |
| Oil tank capacity, (I) | 3 |
| Connections | 3" Hose |
| Thread for overpressure valve | G 1”1/4 |
|
Downloadable Manuals and Files |
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
