Battioni MEC6500 Max Pack, 247 CFM
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE

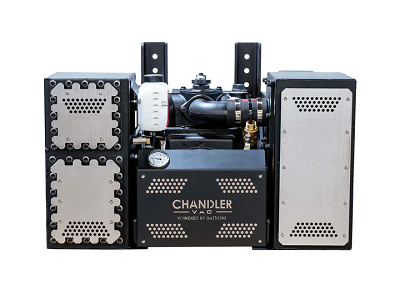

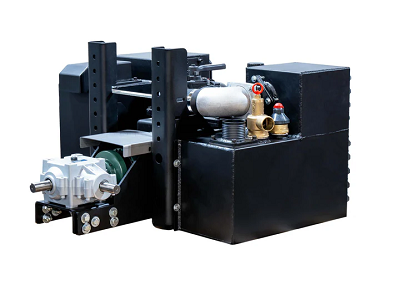

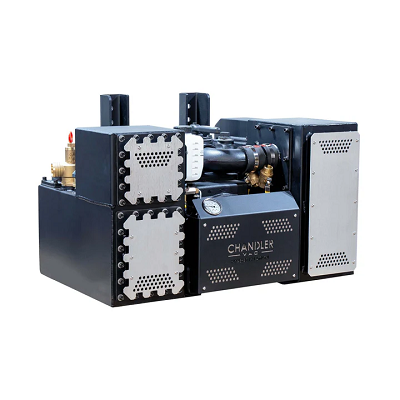

The MEC 6500 Spartan package is built around the Battioni MEC 6500 rotary vacuum pump. This vacuum pump is an absolute beast! The MEC pump is the perfect choice for portable toilet, agricultural spreading, or general purpose vacuum trailers.
Details:
| Specifications: | |
|---|---|
| Max rate of flow, (CFM) | 247 |
| Operating speed, (rpm) | 1200-1400 RPM |
| Max working pressure, Bar (PSI) | 2.5 (36) |
| Max vacuum %, InHg | 94% (28") |
| Power @ max vacuum, kW (hp) | 12.5 (16.7) |
| Net weight (lbs.) | 680 lbs |
|
Dimensions *LENGTH IS FROM FRONT OF SHAFT*, In (LxWxH) |
21.56" x 26.62" x 36.75" |
| Oil Tank Capacity, (l) | 3 |
Click here to view the information manual
Click here to view the instruction and maintenance manual
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
