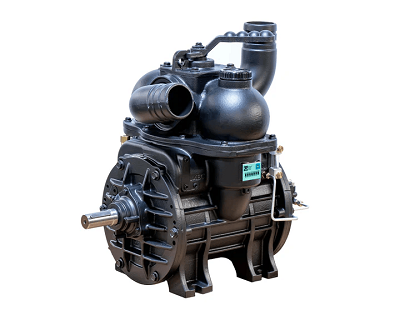

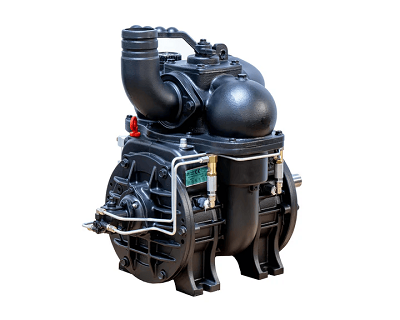

Battioni MEC9000 Ballast Cooled w/ Auto Lube


Battioni MEC9000 Ballast Cooled w/ Auto Lube
Item Number: MEC9000
  Be the first to review this item
Size/Color

Will be shipped via: TRUCK FREIGHT, ESTIMATED
Quantity


Must be shipped via Freight! See our Freight Terms and Conditions HERE

The reliability and strength of the Battioni MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments. Itís simple and practical design made the MEC pumps the product of reference for agricultural and municipalities septic applications.

Battioni Ballast MEC9000 Pump Specifications:

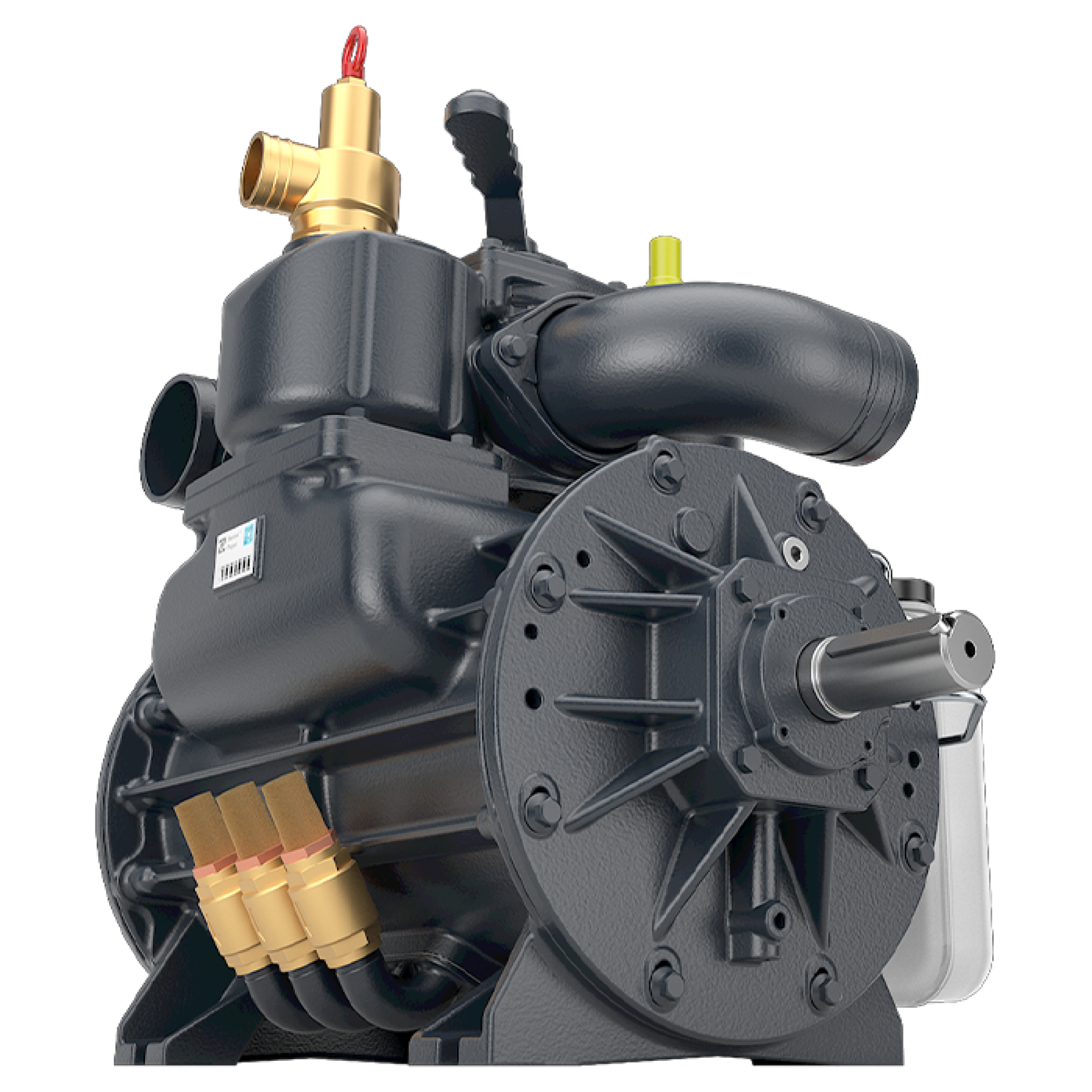

The BALLAST pump represents a technology breakthrough resulted from a major joint effort in product development and innovative design processes. The BALLAST features the Crash Protection System: a sliding flanges protection mechanism that prevents the housing or rotor to break of in case of vanes crash. The pump is easily repairable inexpensively in field. The BALLAST II pump is equipped with the latest automatic air injection cooling system to enable continuous operation at 70% range of vacuum making it ideal for heavy duty applications. Features include: Long Life Blades, Crash Protection System, forced lubrication, external oil level indicator, side outlets, exhaust elbows, 4-ways valve, and a poppet check valve.

• Version P: 32mm Smooth Cylindrical Shaft
• Pump Drive Rotation: Clockwise (CW)
• 3" Connections
• Oil Tank Capacity - 4 Quart
• Injection-Air cooled
• RPM Range: 800 - 1400
• Maximum Air Flow: 320CFM @ free air, 305CFM @ 18 inHg (inches of Mercury)
• Maximum Intermittent Vacuum: 27"
• Maximum Intermittent Pressure: 30PSI
• Net Weight: 311 LBS
• Recommended for 2500-6000 Gallon tanks

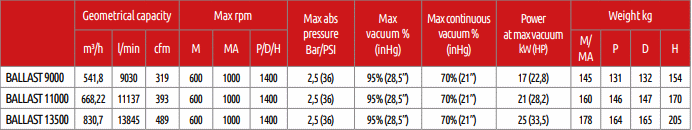

MEC Specifications and Comparison Table viewable on product webpage
