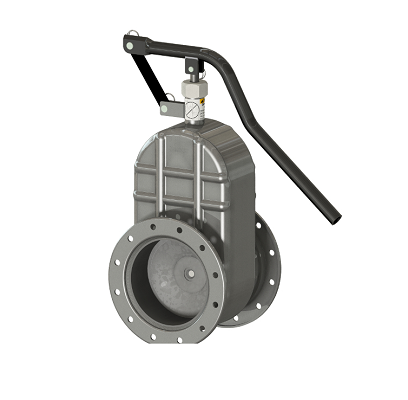

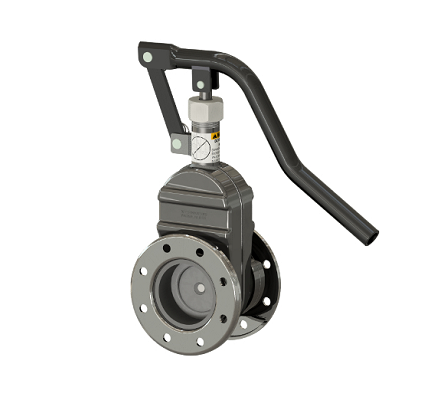

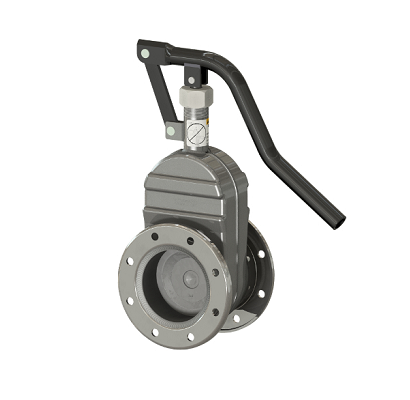

Betts Steel Sliding Gate Valve - TTMA Flange x TTMA Flange


Betts Steel Sliding Gate Valve - TTMA Flange x TTMA Flange
Item Number: SV90MTTXTT  3 IN
Size/Color
Quantity


Betts Steel Sliding Gate Valve - TTMA Flange x TTMA Flange

The Betts sliding valve is an economical manually operated external stop valve that provides a quick open or close function. The 316 stainless discs offer premium corrosion resistance, and the adjustable packing nut with woven PTFE infused packing allows for easy stem adjustments. The metal to metal seal has advantages for many applications, but is susceptible to wear and scratches.

Details:

  • • TTMA Flange x TTMA Flange
  • • Steel body with 316 Stainless Stem & Gates
  • • Manually operated external stop valve
  • • Temperature range: -40°F to 500°F [-40°C to 260°C]

NOTE: Valve should never be heated with flame.
