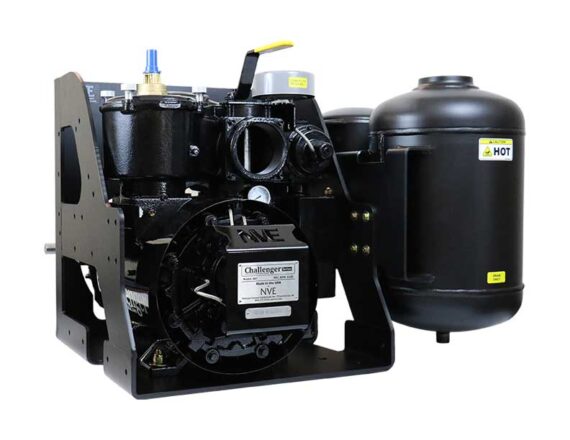

Challenger 887 Pro Muffler Package Includes:
NVE 887 Pump Specifications:
The Challenger 887 Pro Vacuum Pump is a high-performance vacuum pump and requires compatible, high-quality components as manufactured by the innovative minds at National Vacuum Equipment. They also manufacture and distribute all the required components needed for this and every other pump that NVE sells.
| Specifications: | |
|---|---|
| Maximum airflow | 532 CFM |
| Full vacuum | 28" Hg |
| Operating range - RPM | 1100-1200 |
| HP required @ full vacuum | 30-33 |
| HP required @ 10 PSI | 27-31 |
| HP required @ 15 PSI | 27-36 |
| HP required @ 20 PSI | 33-42 |
| HP required @ 25 PSI | 38-48 |
| HP required @ 30 PSI | 50-54 |
| Porting size | 4" |
| Shaft size (3/8" key) | 1-3/4" |

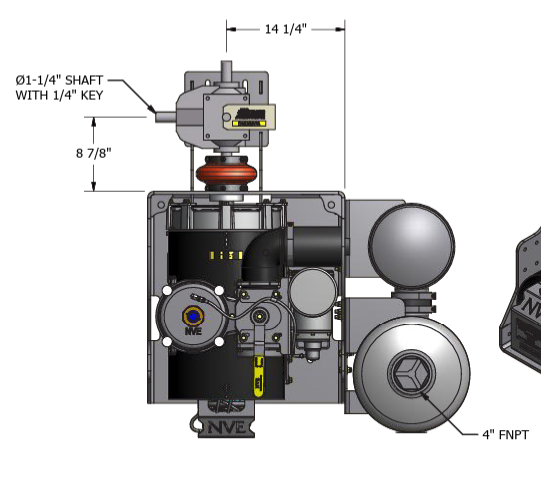

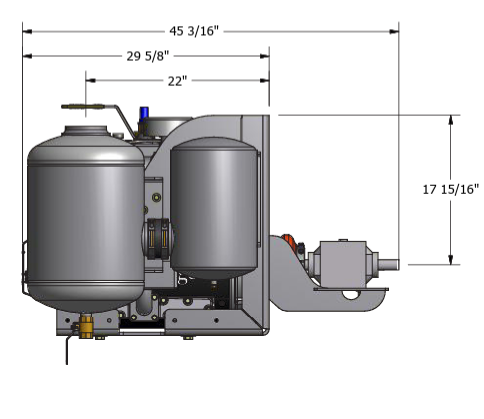

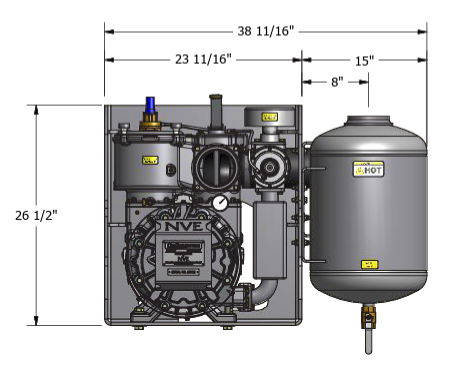

| Pump dimensions | 30-7/16" (L) x 21-7/8" (W) x 27-3/8" (H) |
| Approximate weight | 620 lbs |
View the products catalog HERE
View the parts catalog HERE
View the product brochure HERE
View owners manual HERE
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
