** Not sure which pump you need? Give us a call at 703-334-5980 before placing your order - we’re happy to help make sure you get the right one the first time.
Please note: Pumps ordered incorrectly are subject to a 10% restocking fee, so taking a moment to double-check (or call us) can save you time and money.

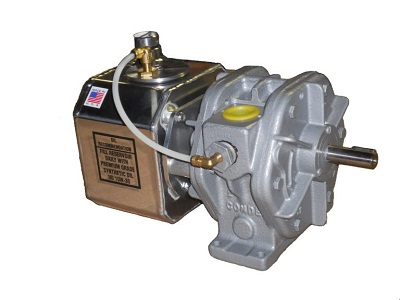

Conde Pro Vac 3, Vacuum Only with Oiler (Clockwise OR Counterclockwise)
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE
Condé PRO VAC Engine Vacuum Units are designed for use with vacuum tank systems. These units are ideal for truck systems that require auxiliary power. These pumps are complete and require only a line from the vacuum pump to the tank for installation.
Details:

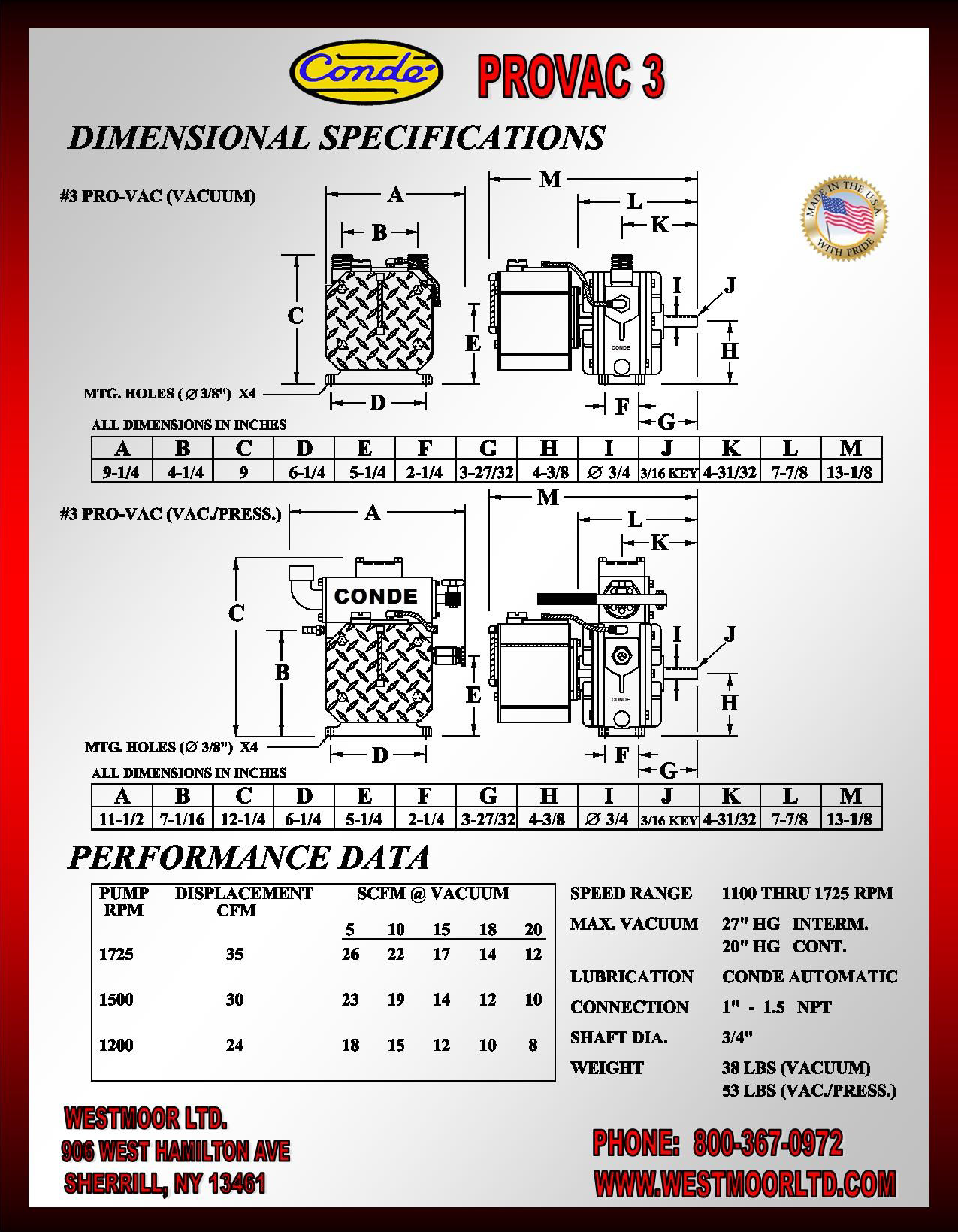

| Specifications: | |
|---|---|
| Recommended Tank Size | 50 to 300 gallons |
| Maximum Air Flow | 35 CFM @ free air |
| Maximum Vacuum | 27" HG (.90 bar) intermittent |
| Maximum Pressure | 20 psi intermittent (for continuous consult factory) |
| Speed Range | 1100 rpm to 1750 rpm |
| Weight | 40 lbs. |
| Connections | 1" |
| Downloadable Manuals and Files |
- Conde ProVac 3 Series User Manual |
NOTE: Conde vacuum pumps require 10W-30 synthetic motor oil for most temperatures/climates, and 5W-30 for colder weather.
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
