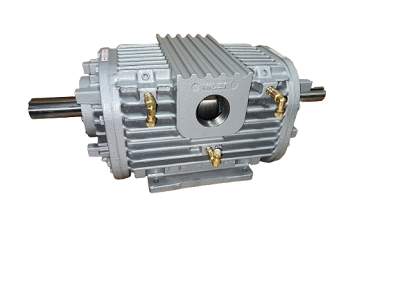

Conde SDS 12, Vacuum Only, No Oiler (Bi-Directional Rotation)
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE
Condé SDS 12 Engine Vacuum Units are designed for use with vacuum tank systems. These units are ideal for truck systems that require auxiliary power. These pumps are complete and require only a line from the vacuum pump to the tank for installation.
Details:

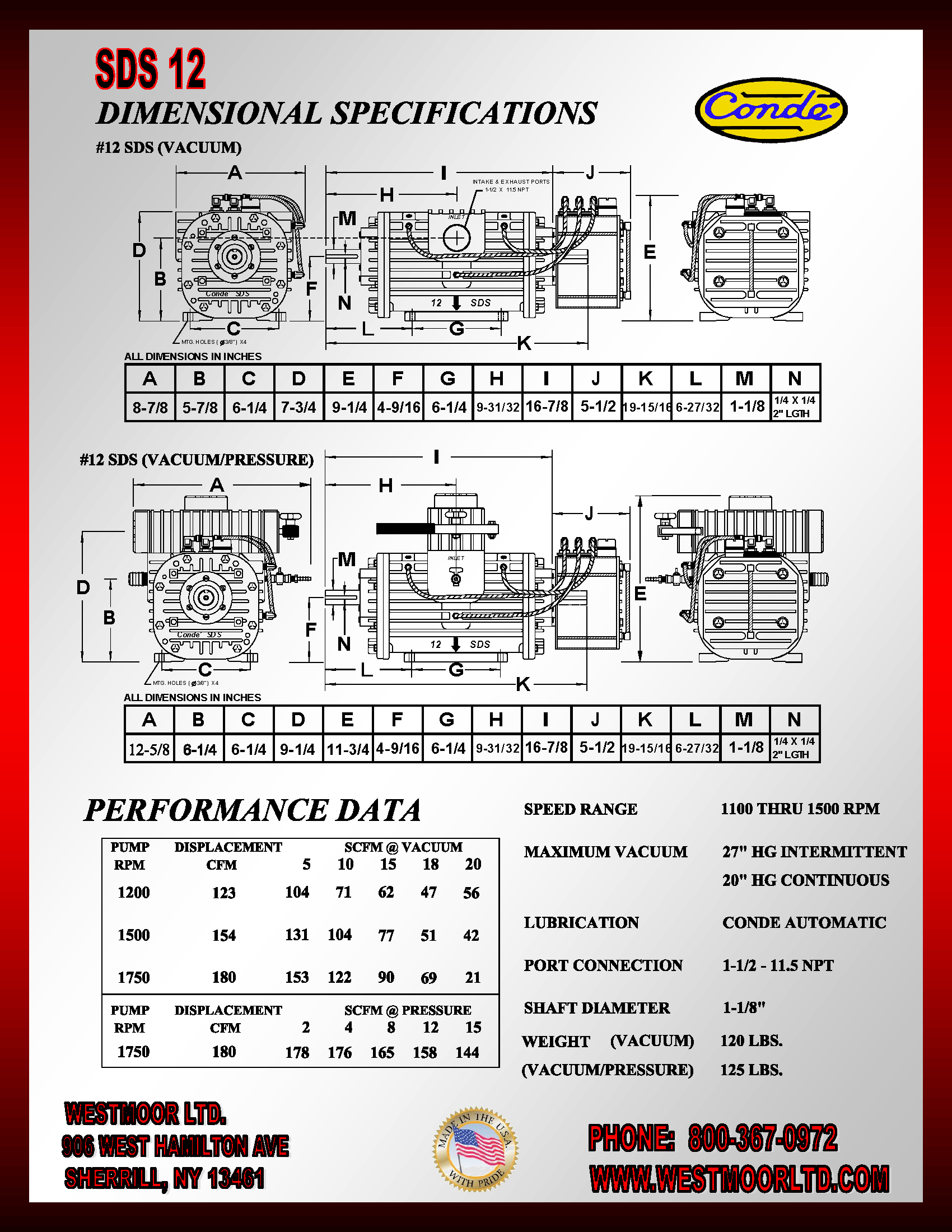

| Specifications: | |
|---|---|
| Recommended Tank Size | 1000 to 2000 gallons |
| Maximum Air Flow | 180 CFM @ free air |
| Maximum Vacuum | 28" HG (.90 bar) intermittent |
| Maximum Pressure | 20 psi intermittent (for continuous consult factory) |
| Speed Range | 1200 rpm to 1750 rpm |
| Weight | 119 lbs. |
| Connections | 1.5" |
| Downloadable Manuals and Files |
- Conde SDS Series User Manual |
NOTE: Conde vacuum pumps require 10W-30 synthetic motor oil for most temperatures/climates, and 5W-30 for colder weather.
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
