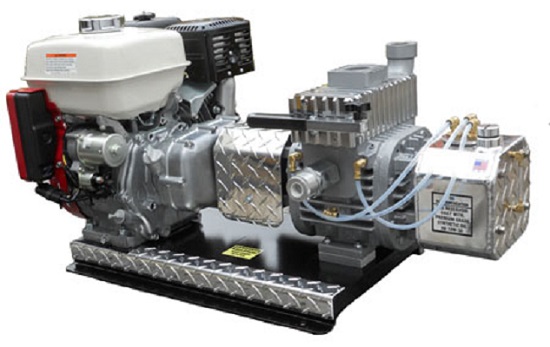

Conde SDS 6 Direct Drive Power Pak, Vacuum/Pressure with 9HP Electric Start


Conde SDS 6 Direct Drive Power Pak, Vacuum/Pressure with 9HP Electric Start
Item Number: HDUN06SDS9DD
Unit Price:
$4,808.00
Quantity


Conde SDS 6 Power Pak, Vacuum/Pressure with 9HP Electric Start and direct drive

*Must be shipped via Freight!* See our Freight Terms and Conditions HERE

Condé SDS 6 POWER PAK Engine Vacuum Units are designed for use with vacuum tank systems. These units are ideal for truck systems that require auxiliary power. These pumps are complete and require only a line from the vacuum pump to the tank for installation.

  • • Heavy duty 12 volt starter, gear reduced for more starting torque
  • • Key switch control box with manual pull-start capability
  • • Large integral fuel tank
  • • 2:1 gearbox increases torque by two times
  • • Centrifugal clutch allows for no load starting and engine to idle without vacuum or water pump operating for longer pump life
  • • Automatic oiling system oils pump properly at all vacuum levels and included with the system
  • • Use with remote oiler allows for double shaft operation to run auxiliary equipment
  • • Heavy duty 3/16" base with diamond plate trim
  • • Integral vacuum relief valve included



Details:

  • • Vacuum AND Pressure Model
  • • Double shaft design
  • • O-Ring seals prevent leakage
  • • Low profile, mounts where others cannot
  • • Sealed bearings require no maintenance
  • • End thrust protection
  • • Tangential rotor design for longer vane life

Honda OHV Gasoline Engines:

  • • OHV head design
  • • Cast iron sleeve cylinder
  • • Ball bearing crankshaft
  • • Automatic oil alert system shuts motor down when oil is low
  • • Wet centrifugal clutch
  • • Low vibration & noise
  • • Low maintenance
  • • Easy starting
Specifications:
Recommended Tank Size 500 to 1000 gallons
Maximum Air Flow 115 CFM @ free air
Engine Honda GX270, electric start
Oiler Automatic
Drive System Direct drive, 2:1 ratio with centrifugal clutch
Downloadable Manuals and Files - Conde SDS Series User Manual
- Conde SDS 6 PowerPak Specs
- Conde SDS 6 Accessories



NOTE: Conde vacuum pumps require 10W-30 synthetic motor oil for most temperatures/climates, and 5W-30 for colder weather.

Vacuum Pump Oil Pump Manufacturer
ISO 32 Masport (Winter)
ISO 68 Battioni, NVE, Masport (All Season)
ISO 100 Moro, Masport (Summer)
ISO 150 Jurop, Fruitland, NVE
