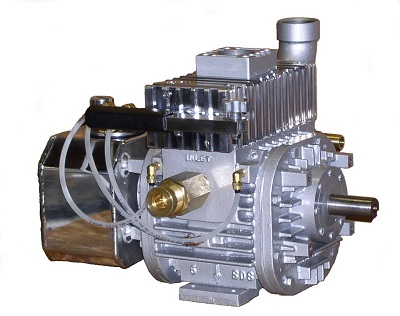

Conde SDS 6 HD, Vacuum/Pressure Pump with Oiler (Clockwise OR Counterclockwise)
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE
Condé SDS 6 HD Engine Vacuum Units are designed for use with vacuum tank systems. These units are ideal for truck systems that require auxiliary power. These pumps are complete and require only a line from the vacuum pump to the tank for installation.
Details:
| Specifications: | |
|---|---|
| Recommended Tank Size | 400 to 1000 gallons |
| Maximum Air Flow | 115 CFM @ free air |
| Maximum Vacuum | 27" HG (.90 bar) intermittent |
| Maximum Pressure | 20 psi intermittent (for continuous consult factory) |
| Speed Range | 1200 rpm to 1750 rpm |
| Weight | 92 lbs. |
| Connections | 1.5" |

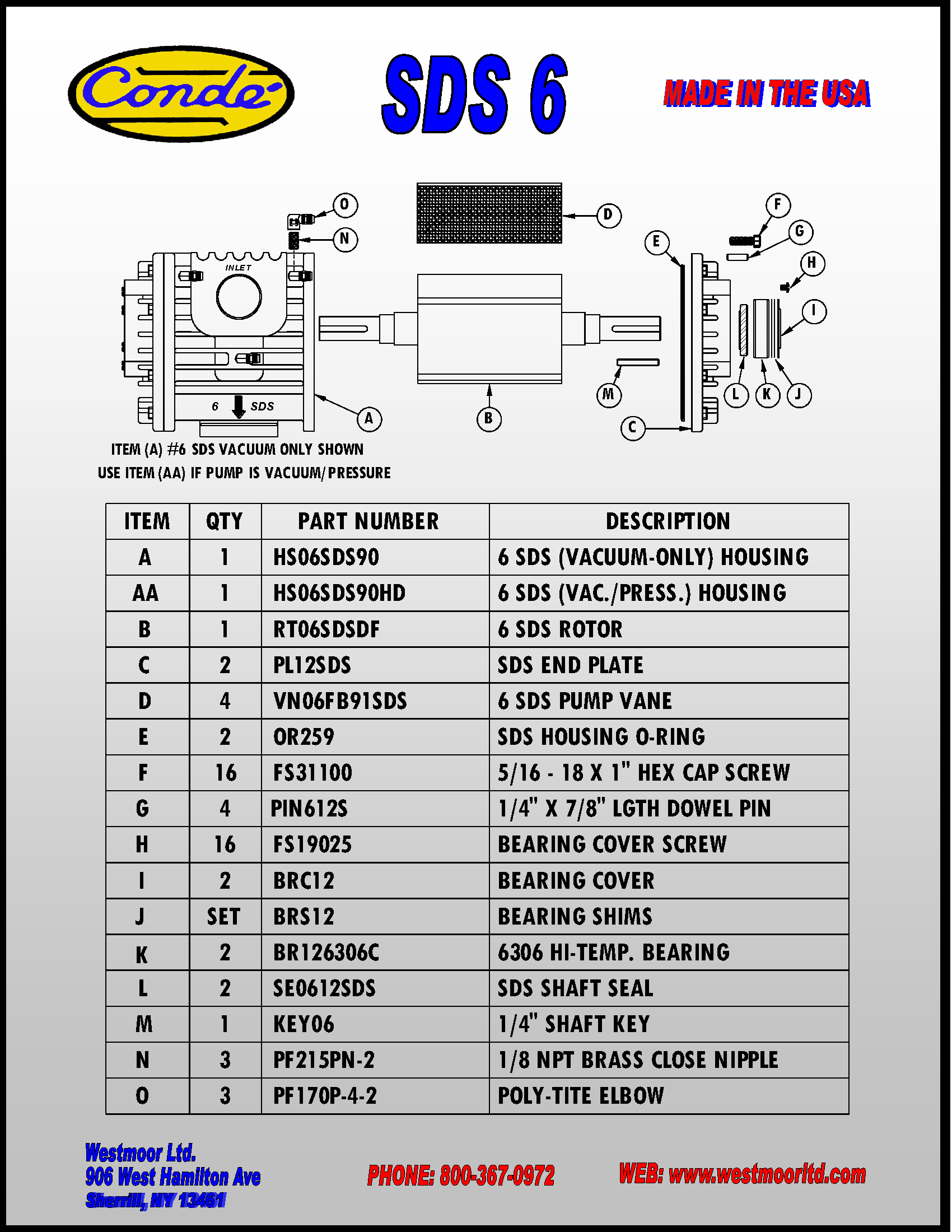

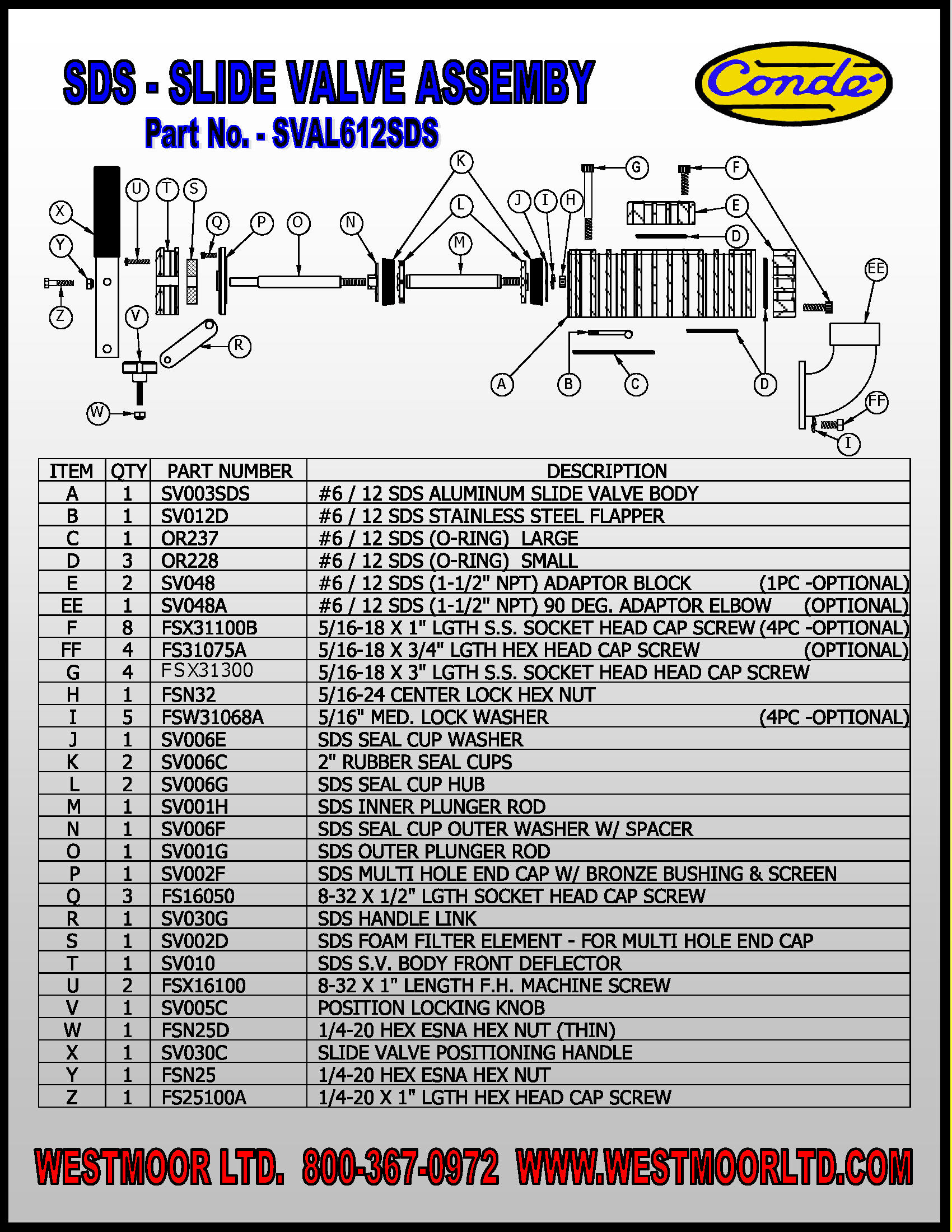

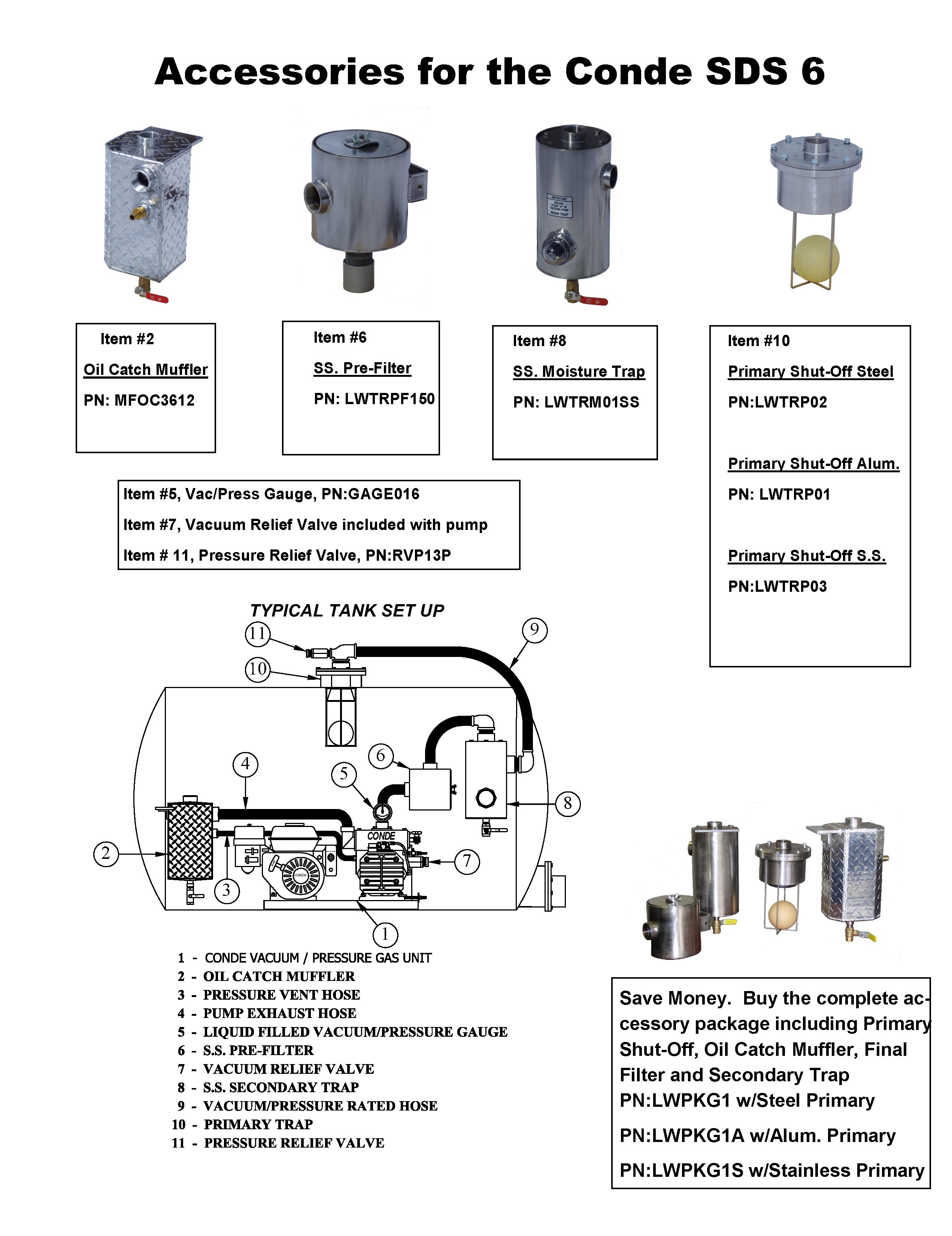

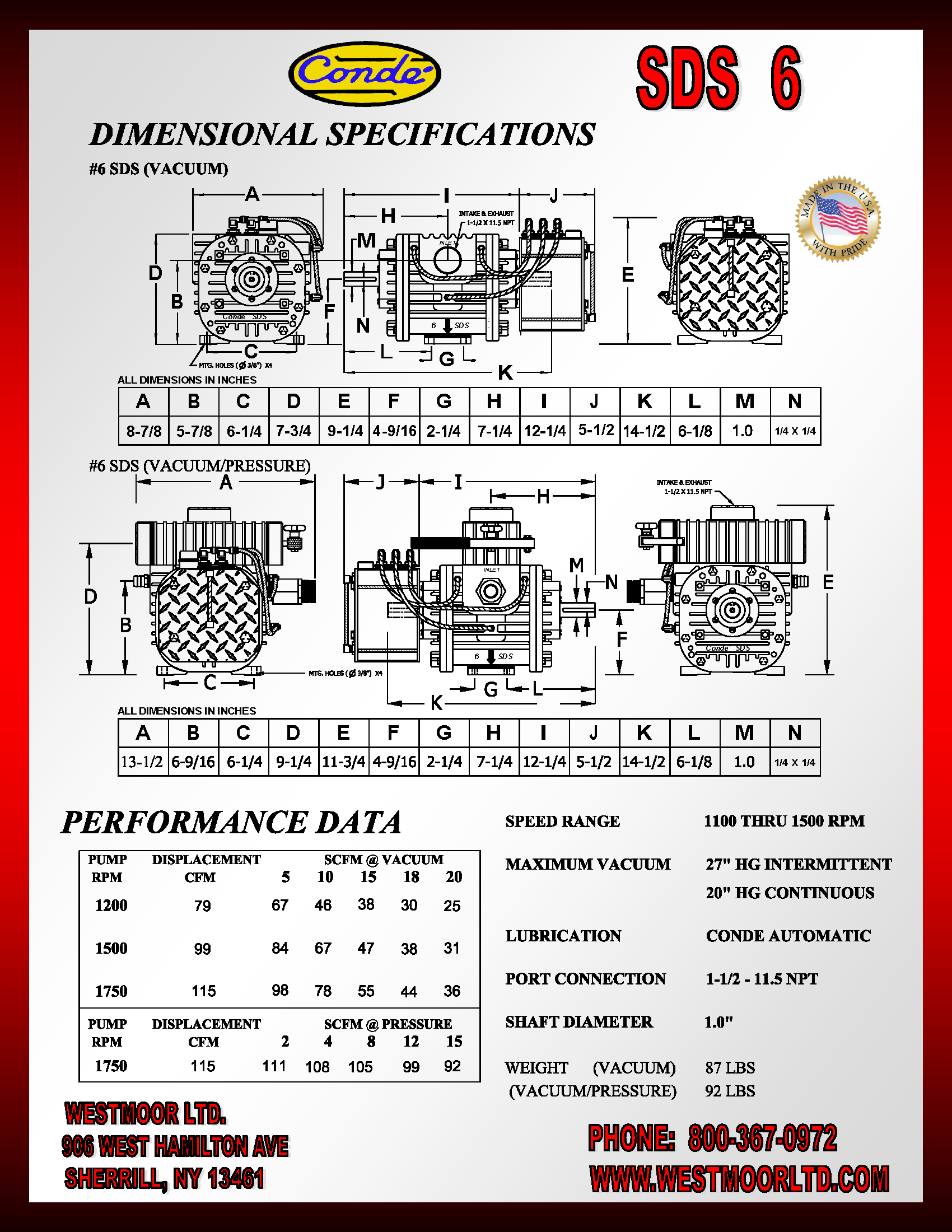

| Downloadable Manuals and Files | - Conde SDS Series User Manual - Conde SDS 6 Spec Sheet - Conde SDS 6 Accessories - SDS 6 Pump Parts Breakout - SDS Slide Valve Assembly Breakout - Oiler Breakout |
NOTE: Conde vacuum pumps require 10W-30 synthetic motor oil for most temperatures/climates, and 5W-30 for colder weather.
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
