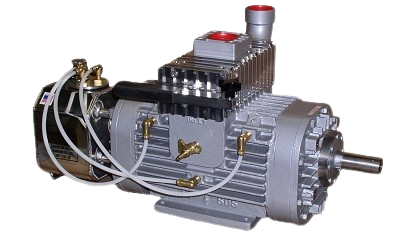

Conde SDS Ultra, Vacuum/Pressure Pump with Oiler (Clockwise OR Counterclockwise Rotation)
*Must be shipped via Freight!* See our Freight Terms and Conditions HERE
Condé SDS ULTRA Engine Vacuum Units are designed for use with vacuum tank systems. These units are ideal for truck systems that require auxiliary power. These pumps are complete and require only a line from the vacuum pump to the tank for installation.
Details:
| Specifications: | |
|---|---|
| Recommended Tank Size | 1200 to 2500 gallons |
| Maximum Air Flow | 230 CFM @ free air |
| Maximum Vacuum | 28" HG (.90 bar) intermittent |
| Maximum Pressure | 20 psi intermittent (for continuous consult factory) |
| Speed Range | 1200 rpm to 1750 rpm |
| Weight | 170 lbs. |
| Connections | 1.5" |

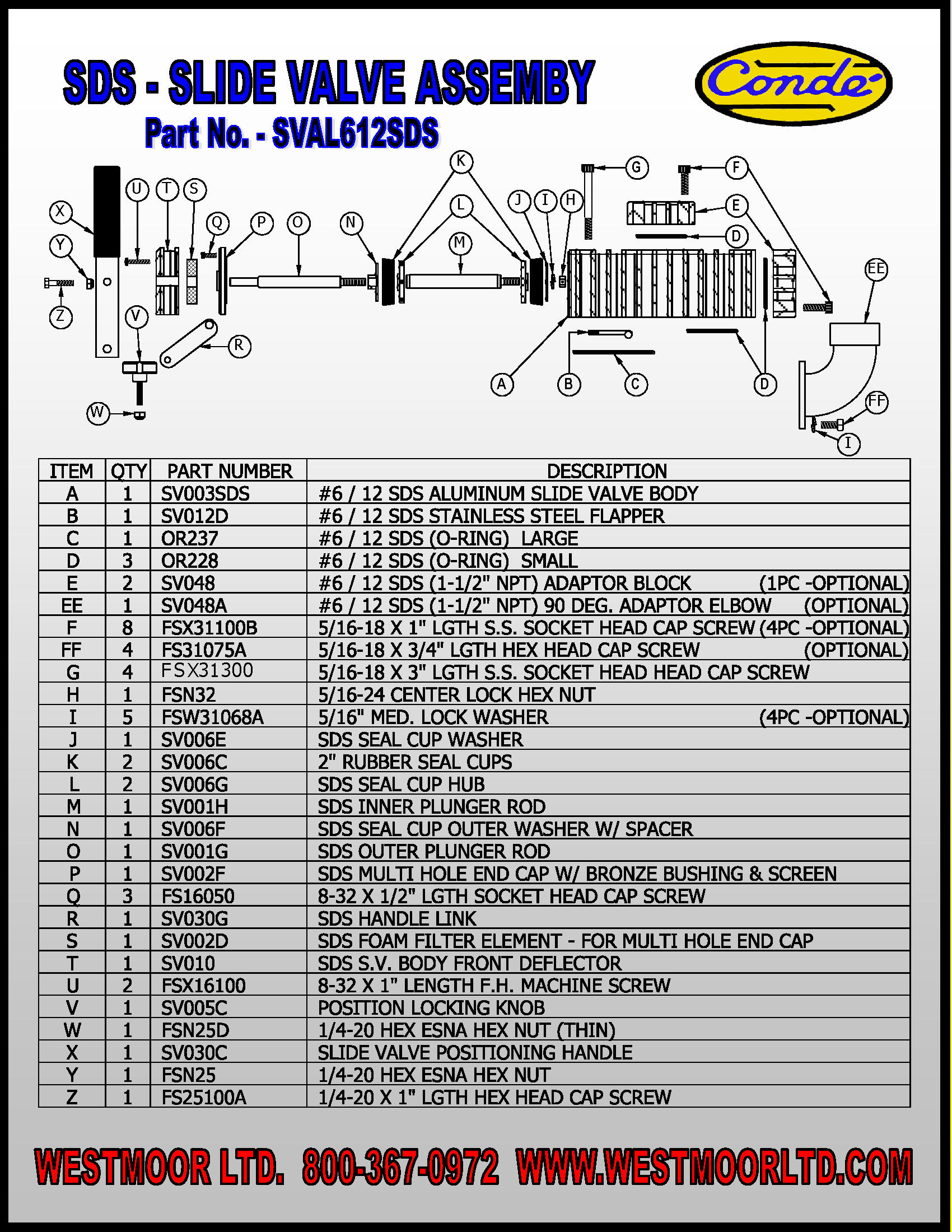

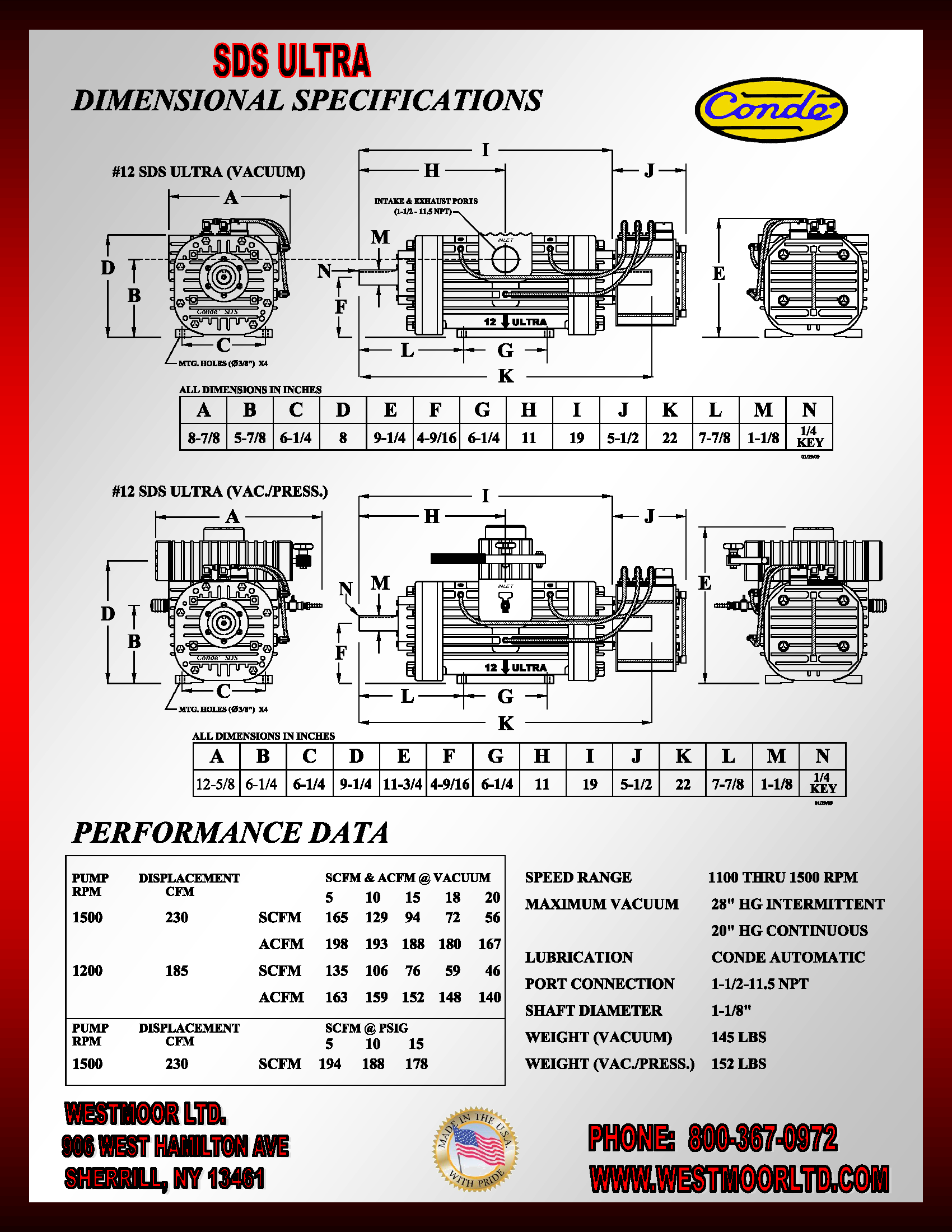

| Downloadable Manuals and Files | - Conde SDS Series User Manual - Conde SDS Ultra Spec Sheet - Conde SDS Accessories - SDS Ultra Pump Parts Breakout - SDS Slide Valve Assembly Breakout - Oiler Breakout |
NOTE: Conde vacuum pumps require 10W-30 synthetic motor oil for most temperatures/climates, and 5W-30 for colder weather.
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
