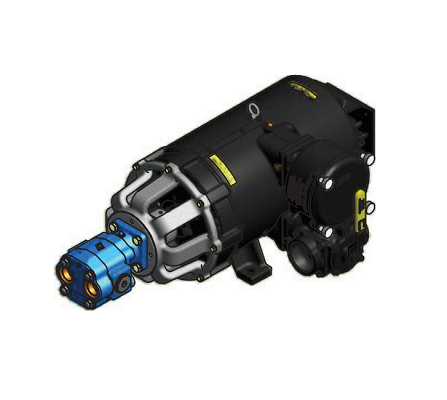

Fan Cooled Hydraulic Motor for Challenger 607 PRO - Clockwise
Hydraulic motor fan cooled with side valve.
Details:
- • Side valve
- • Fan cooled
- • Clockwise
- • Heavy-duty automatic alignment bracket
- • SAE B face 2 and 4 bolt flange
- • Coupler set
- • Shaft 1.25" with 5/16" Keyway
- • Side Ports 1.25" ORB
- • Cubic Inch Displacement 5.20IN^3/REV
- • Permco model # M5151A731NMZK20-00(NV)
- • Max working pressure: 2500 psi
- • Hydraulic pump should supply 29 gpm @ 2000 psi to turn the 607 at 1250 rpm
NOTE: Customer must install a case drain and plumb back to tank.
