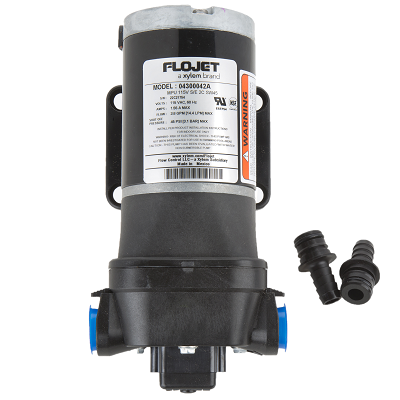

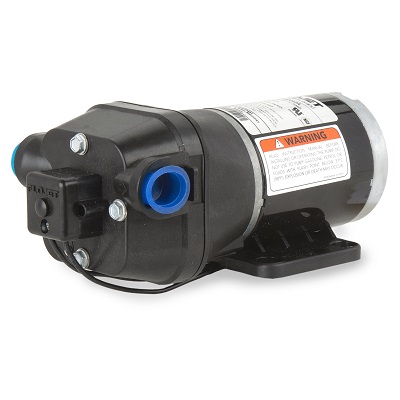

Flojet Quad Series Diaphragm Pump - 115 V, 45PSI, 3.1 GPM, No Cord


Flojet Quad Series Diaphragm Pump - 115 V, 45PSI, 3.1 GPM, No Cord
Images/04300-042A-1.png Images/04300-042A-2.jpg
Item Number: 04300-042A
Unit Price:
$139.25
Quantity


Flojet Quad Series Diaphragm Pump - 115 V, 45PSI, 3.1 GPM, No Cord

Flojet developed the Quad Series diaphragm pumps to deliver flows using a four-piston design with excellent self-priming capability. Aside from general purpose needs, including water transfer or spraying, Flojet Quad Series pumps can also accommodate the pressure and flow rates required for agricultural spraying, automotive use, chemical transfer, road compaction, floor care, and car wash applications.

Features:

  • • No Cord
  • • Voltage: 115 V AC
  • • Open Flow: 3.1 GPM (11.7 LPM)
  • • Switch: 45 PSI (3.1 bar)
  • • Max AMP Draw: 1.0A
  • • Diaphragm: Santoprene
  • • Check Valve: EPDM
  • • Fittings: 1/2" (13mm) HB ST
  • • Includes (2) ½-inch straight and (2) ½-inch elbows
  • • Built-in pressure switch automatically starts & stops pump when discharge valve opens and closes
  • • Compact design and plug-in port fittings make installation easy
  • • Can run dry without damage and handle liquids up to 130°F (54°C)
  • • Excellent self-priming capability; pump may be located above the liquid level

Downloadable Files
- Flojet Quad Series Number/Specs Table
