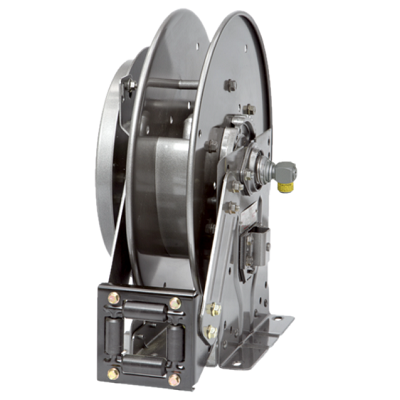

N700 Series Spring Rewind Hose Reel for 100' of 3/8" ID or 1/2" ID


N700 Series Spring Rewind Hose Reel for 100' of 3/8
Item Number: N718-25-26-15.5G
Unit Price:
$865.00
*Specify roller position (diagram below)
Quantity


N700 Series Spring Rewind Hose Reel for 100' of 3/8" ID or 1/2" ID

**NOTE: THIS REEL MUST SHIP TRUCK FREIGHT.

Hannay's N700 Series Spring Rewind hose reel for 100ft of 3/8inch ID or 1/2inch ID hose. For lubrication, air, water, steam, assembly operations, washdown, air tools, high pressure, and general industrial applications.

Details:

  • • Standard N Series have a narrow frame and compact mounting base
  • • Non-sparking ratchet assembly
  • • Declutching arbor to prevent damage from reverse winding
  • • Standard inlet: 90° balanced pressure swivel joint, 1/2" female NPT threads
  • • Standard outlet: 1/2" female NPT threads
  • • Standard pressures to 3000 psi (207 bar)
  • • Standard fluid temperatures from -40° F to +250 °F (-40° C to +121° C)
  • • 4-way roller assembly
  • • SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left

* Please specify roller position when adding to cart, use the roller diagram below for reference *

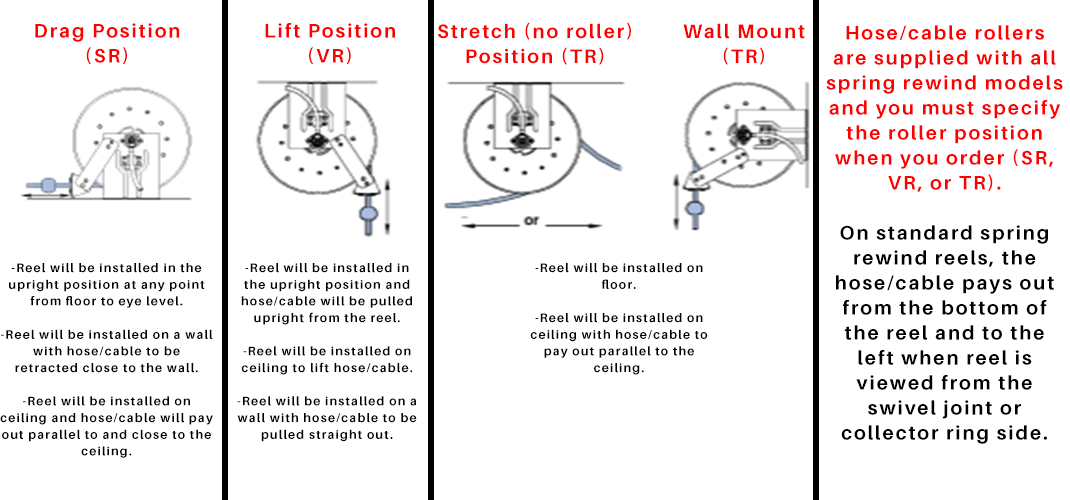

Roller Position Diagram:






Downloadable Files
N700 Series Spring Rewind Parts List
