JIC Female Swivel, 37 Degree Seat


JIC Female Swivel, 37 Degree Seat
Item Number: B-FJDH  0404
Size/Color
Quantity


JIC Female Swivel, 37 Degree Seat

Kuriyama JIC female swivel 37 degree seat dual hex.

Details:

  • • Connection Type: Female
  • • Seat Angle: 37°
  • • Type: JIC Female 37° Seat Dual Hex

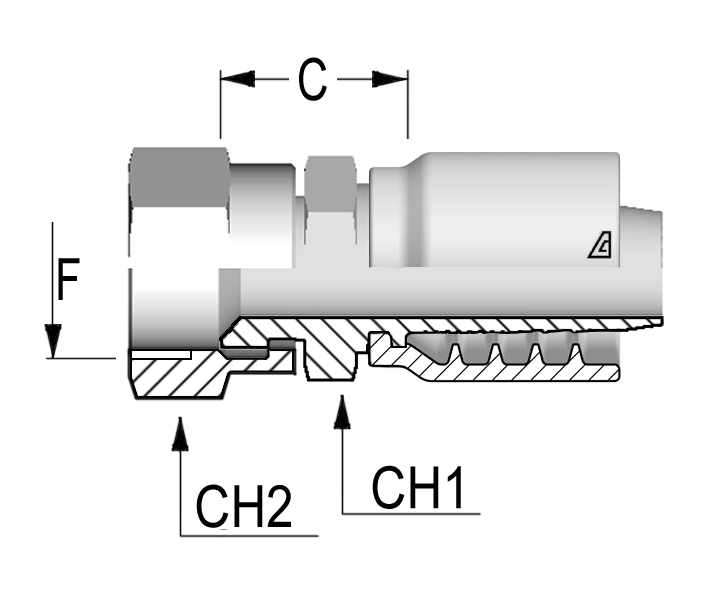

Specifications: Dash Size F Thread Dash Size C Cut-Off Factor CH1 CH2
1/4" I.D. Hose x 7/16" JIC Female Swivel 04 04 19.6 mm 14 mm 16mm
1/4" I.D. Hose x 1/2" JIC Female Swivel 04 05 20.3 mm 14 mm 17 mm
1/4" I.D. Hose x 9/16" JIC Female Swivel 04 06 20.3 mm 14 mm 19 mm
3/8" I.D. Hose x 9/16" JIC Female Swivel 06 06 21.3 mm 17 mm 19 mm
3/8" I.D. Hose x 3/4" JIC Female Swivel  06 08 24.8 mm 19 mm 25 mm
 3/8" I.D. Hose x 7/8" JIC Female Swivel 06 10 25.8 mm 22 mm 27 mm
1/2" I.D. Hose x 9/16" JIC Female Swivel 08 06 23.1 mm 19 mm 19 mm
1/2" I.D. Hose x 3/4" JIC Female Swivel 08 08 25.6 mm 19 mm 25 mm
1/2" I.D. Hose x 7/8" JIC Female Swivel  08 10 26.6 mm 22 mm 27 mm
1/2" I.D. Hose x 1-1/16" JIC Female Swivel 08 12 28.1 mm 25 mm 32 mm
5/8" I.D. Hose x 7/8" JIC Female Swivel  10 10 27.6 mm 24 mm 27 mm
3/4" I.D. Hose x 1-1/16" JIC Female Swivel 12 12 28.6 mm 27 mm 32 mm
3/4" I.D. Hose x 1-3/16" JIC Female Swivel 12 14 29.9 mm 32 mm 36 mm
1" I.D. Hose x 1-5/16" JIC Female Swivel 16 16 32.9 mm 32 mm 38 mm
