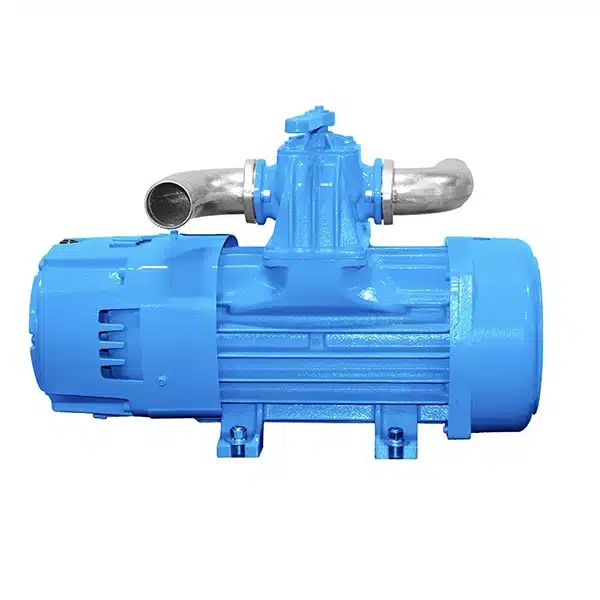

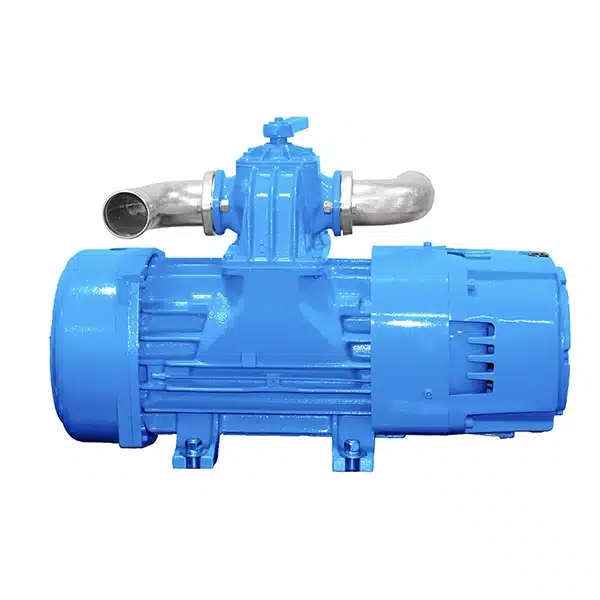

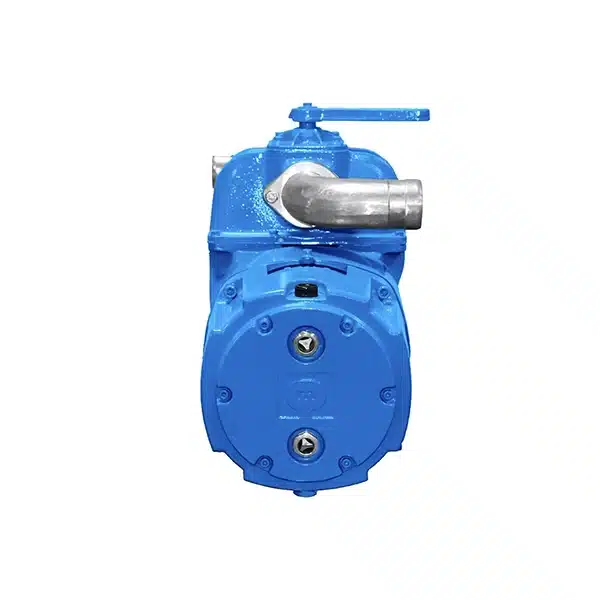

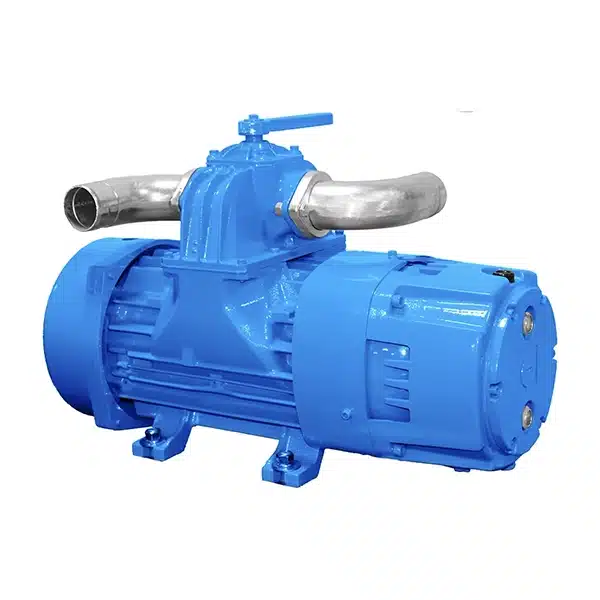

Moro PM80T Vacuum Pump


Moro PM80T Vacuum Pump
Images/Moro-PM80T-Vacuum-Pump-5.png Images/Moro-PM80T-Vacuum-Pump-2.png Images/Moro-PM80T-Vacuum-Pump-3.png Images/Moro-PM80T-Vacuum-Pump-4.png
Item Number: PM80T
Size/Color
Quantity


Must be shipped via Freight! See our Freight Terms and Conditions HERE

Moro PM80T Pump Specifications:

  • • Heavy duty dual fan-cooled design for tough industrial application
  • • High quality Viton oil seals equals a longer life than traditional oil seals
  • • Continuous pumping duty
  • • No expensive cooling system, no risk to truck cooling system and no need to run water lines to truck cooling system
  • • Integrated check valve, change-over valve and oiling system allow for ease-of-use and installation
  • • Low rotating speeds lead to longer pump life
  • • 3? Hose connections with elbows
Specifications:
Weight 420 lbs
Dimensions
30" × 16" × 33"
CFM 414
PSI 29
RPM 1100
Hose 3"
Oil tank capacity 4.8 qts
Suggested tank size 1000-4000 gallons
Max vacuum 28 InHg
Continuous duty vacuum  22 InHg



Moro PM80T Vacuum Pump

The Moro PM80T Vacuum Pump exemplifies the cutting-edge design and robust performance characteristics of the TURBO Series. These fan-cooled vacuum pumps leverage dual-fan technology to significantly enhance heat dissipation, making them ideally suited for industrial applications with diverse capability requirements.

Superior Pump Manufacturing for Enhanced Reliability

Crafted with a durable cast iron body, the TURBO Series vacuum pumps, including the PM80T, ensure maximum reliability and efficient heat release. Cast iron is renowned for its exceptional heat dissipation properties, which help maintain optimal operating temperatures and prolong the pump’s service life.

Pump Noise and Heat Reduction Technology

Designed to reduce both noise and heat production, the TURBO Series incorporates finely calibrated air intake and discharge ports. The addition of two cooling fans further improves heat management, enabling extended pump operation without compromising performance.

Easy Maintenance and Inspection Features

Maintenance is straightforward with the PM80T, thanks to an integrated inspection port that allows for a visual check of the equipment’s wear. This feature helps operators quickly and efficiently monitor the condition of the pump, ensuring consistent and reliable performance.

High-Performance Components

The PM80T vacuum pump is equipped with high-quality Kevlar vanes and heat-resistant Viton seals, ensuring superior performance even at high temperatures. The seamless integration of non-return and four-way valves enhances operational efficiency, while the flanged hose connection elbows can be adjusted to meet specific usage requirements.

Impressive Flow Capacity

Delivering a substantial flow capacity of 414 CFM, the Moro PM80T Vacuum Pump stands out as a powerful and reliable solution for a wide range of industrial applications. Its advanced features and robust construction make it an invaluable asset for industries seeking efficiency, durability, and exceptional performance.



Vacuum Pump Oil Pump Manufacturer
ISO 32 Masport (Winter)
ISO 68 Battioni, NVE, Masport (All Season)
ISO 100 Moro, Masport (Summer)
ISO 150 Jurop, Fruitland, NVE
