N700 Series Spring Rewind Hose Reel for 35' of 3/8" ID or 1/2" ID
Hannay's N700 Series Spring Rewind hose reel for 35ft of 3/8inch ID hose or 1/2" ID hose. For use in lubrication, air, water, steam, assembly operations, washdown, air tools, high pressure, general industrial applications.
Details:
- • Standard N Series has a narrow frame and compact mounting base
- • Non-sparking ratchet assembly
- • Declutching arbor to prevent damage from reverse winding
- • Standard inlet: 90° balanced pressure swivel joint, 1/2" female NPT threads
- • Standard outlet: 1/2" female NPT threads
- • Standard pressures to 3000 psi (207 bar)
- • Standard fluid temperatures from -40° F to +250 °F (-40° C to +121° C)
- • 4-way roller assembly
- • SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left
*Please specify roller position prior to checkout, refer to the roller position diagram below*

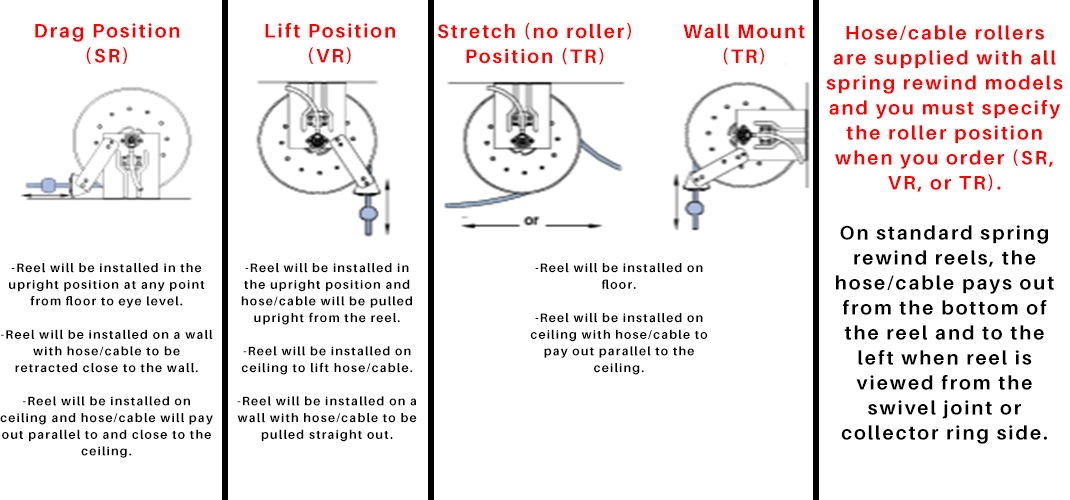

Roller Position Diagram:
