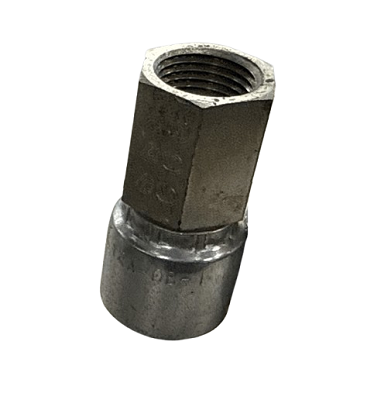

NPTF Solid Female Coupling - Hydraulic Fitting
Kuriyama NPTF solid female coupling for hydraulic fittings.
Details:

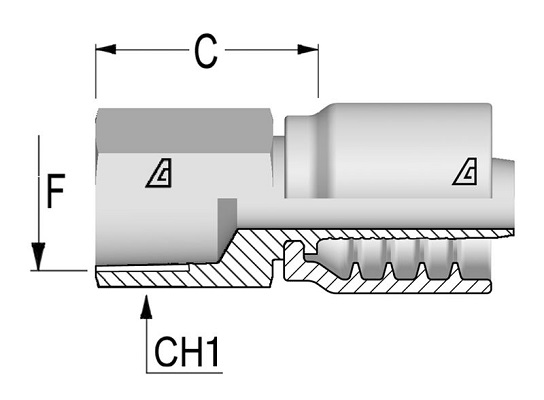

| Specifications: | Dash Size | F Thread Dash Size | C Cut-Off Factor | CH1 |
|---|---|---|---|---|
| 1/4" I.D. Hose x 1/4" Solid FPT | 04 | 04 | 27.8 mm | 19 mm |
| 1/2" I.D. Hose x 1/2" Solid FPT | 08 | 08 | 35.6 mm | 25 mm |
| 3/4" I.D. Hose x 3/4" Solid FPT | 12 | 12 | 38.1 mm | 32 mm |
| 1" I.D. Hose x 1" Solid FPT | 16 | 16 | 44.9 mm | 38 mm |
