NPTF Solid Male Pipe Thread 60 Degree Seat - Hydraulic Fitting


NPTF Solid Male Pipe Thread 60 Degree Seat - Hydraulic Fitting
Images/B-MNPT_2.png Images/B-MNPT.jpg
Item Number: B-MNPT  0402
Size/Color
Quantity


NPTF Solid Male Pipe Thread 60 Degree Seat - Hydraulic Fitting

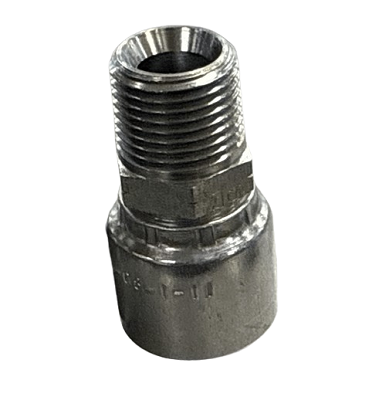

Kuriyama NPTF male 60 degree seat for hydraulic fittings.

Details:

  • • Connection Type: Male
  • • Seat Angle: 60°
  • • Type: NPTF Male 60° Seat

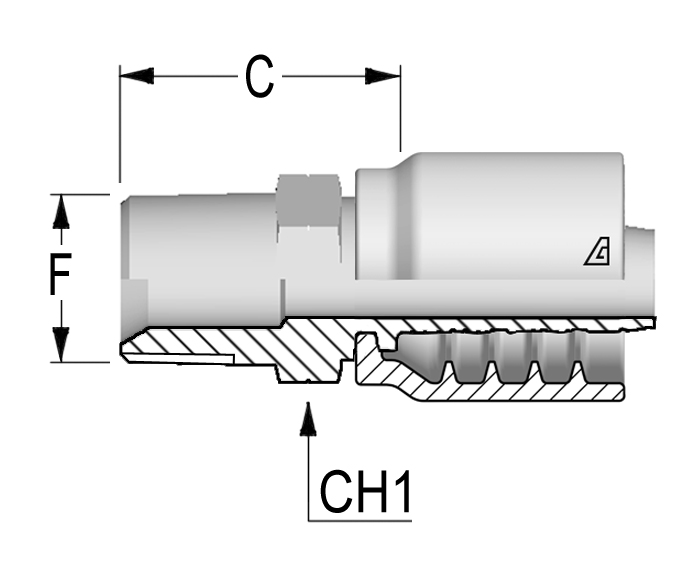

Specifications: Dash Size F Thread Dash Size C Cut-Off Factor CH1
1/4" I.D. Hose x 1/8" Solid MPT 04 02 21.3 mm 14.0 mm
1/4" I.D. Hose x 1/4" Solid MPT 04 04 26.8 mm 14.3 mm
1/4" I.D. Hose x 3/8" Solid MPT 04 06 27.8 mm 19.0 mm
3/8" I.D. Hose x 3/8" Solid MPT 06 06 27.8 mm 19.0 mm
3/8" I.D. Hose x 1/2" Solid MPT 06 08 31.3 mm 22.0 mm
1/2" I.D. Hose x 3/8" Solid MPT 08 06 28.6 mm 19.0 mm
1/2" I.D. Hose x 1/2" Solid MPT 08 08 32.1 mm 22.0 mm
1/2" I.D. Hose x 3/4" Solid MPT 08 12 34.1 mm 27.0 mm
5/8" I.D. Hose x 3/4" Solid MPT 10 12 34.1 mm 27.0 mm
3/4" I.D. Hose x 3/4" Solid MPT 12 12 34.6 mm 27.0 mm
3/4" I.D. Hose x 1" Solid MPT 12 16 43.6 mm 36.0 mm
1" I.D. Hose x 1" Solid MPT 16 16 44.4 mm 36.0 mm
