One Piece SAE Solid Male O-Ring Boss Hydraulic Fitting
Kuriyama SAE male o-ring boss.
Details:

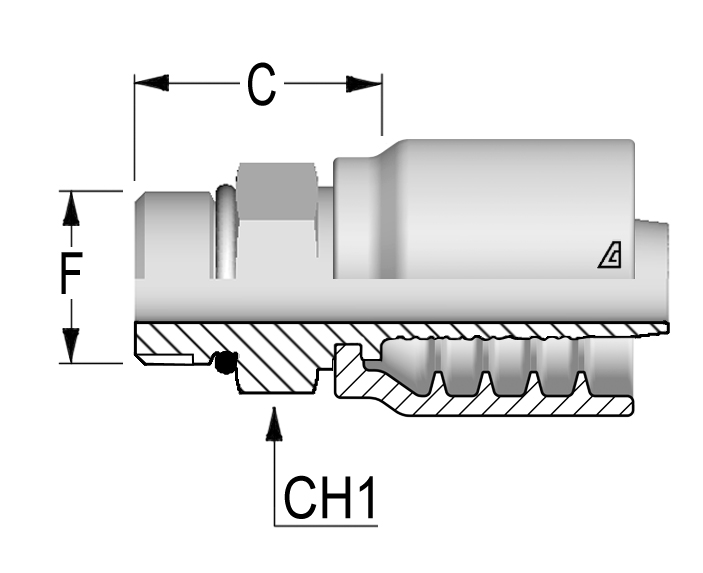

| Specifications: | Dash Size | F Thread Dash Size | F Thread Size (in. TPI) | C Cut-Off Factor | CH1 |
|---|---|---|---|---|---|
| 1/4" hose x 7/16" solid male o-ring boss | 04 | 04 | 7/16-20 | 20.3mm | 20.3mm |
| 3/8" hose x 9/16" solid male o-ring boss | 06 | 06 | 9/16-18 | 23.3mm | 19mm |
| 3/8" hose x 3/4" solid male o-ring boss | 06 | 08 | 3/4-16 | 24.3mm | 22mm |
| 1/2" hose x 3/4" solid male o-ring boss | 08 | 08 | 3/4-16 | 25.1mm | 22mm |
| 1/2" hose x 7/8" solid male o-ring boss | 08 | 10 | 7/8-14 | 27.6 mm | 27 mm |
| 1/2" hose x 1-1/16" solid male o-ring boss | 08 | 12 | 1 1/16-12 | 32.1 mm | 32 mm |
| 5/8" hose x 7/8" solid male o-ring boss | 10 | 10 | 7/8-14 | 29.8 mm | 27 mm |
| 3/4" hose x 7/8" solid male o-ring boss | 12 | 10 | 7/8-14 | 28.1 mm | 27 mm |
| 3/4" hose x 1-1/16" solid male o-ring boss | 12 | 12 | 1 1/16-12 | 32.6 mm | 32 mm |
