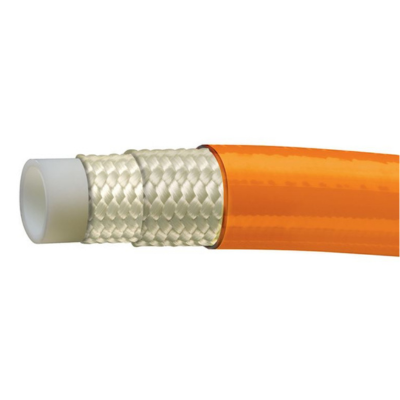

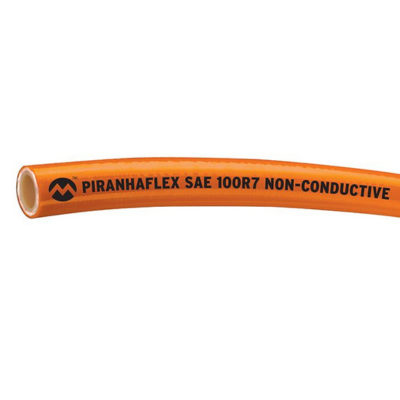

Piranhaflex PF354NC Hydraulic Hose - Orange
For industrial equipment and vehicles (construction, agriculture, material handling, etc.), hydraulic oil and lubrication lines.
Details:
- • Color: Orange
- • Tube: Nylon
- • Type: Medium Pressure Hydraulic Hose
- • Performance: Medium Pressure Hydraulic Hose Applications
- • Reinforcement: Braided high tensile strength fibers
- • Cover: Pin pricked, abrasion resistant polyurethane. Allows for the escape of gasses, if necessary, eliminating risk of cover blistering
- • Service Temperature Range: -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids
|
1/4" I.D. |
3/8" I.D. |
1/2" I.D. |
| Size Code |
04 |
06 |
08 |
| OD |
0.496 in, 12.6 mm |
0.650 in, 16.5 mm |
0.834 in, 21.2 mm |
| Max. Working Pressure |
2750 psi |
2250 psi |
2000 psi |
| Min. Bending Radius |
1.50 in, 38 mm |
2.00 in, 51 mm |
3.00 in, 76 mm |
