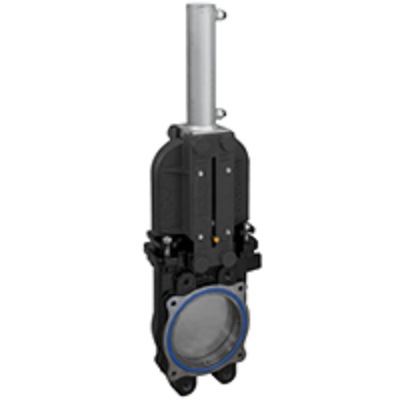

RIV Gladio Knife Gate Valve with DA Hydraulic Cylinder


RIV Gladio Knife Gate Valve with DA Hydraulic Cylinder
Images/GLADIO-HCD-1.png Images/GLADIO-HCD-2.PNG
Item Number: GLADIO-HCD  4
Size/Color
Quantity


RIV Gladio Knife Gate Valve with DA Hydraulic Cylinder

GLADIO is standard equipped with double flanging, one for the fitting with square flange for agricultural use of standard dimensions and ANSI 150. Due to its special design feature, GLADIO is a gate valve called "anti-clogging" and can be installed in any position.

Details:

  • • Large-size self-cleaning seat
  • • GLADIO has a robust protective casing, which completely isolates the moving parts of the gate valve
  • • Stainless steel screws and tie rods to prevent corrosion
  • • Equipped with an open/closed position indicator
  • • Simple maintenance: all parts, when worn out, are easily replaceable
  • • Double-acting hydraulic jack
  • • Includes o-ring gasket
  • • Class 150 ANSI flange

Size RIV Model Pressure Rating Number of Bolts Flange Pattern
6" 050134000019 145 PSI 4 8 bolt ANSI
8" 050134000020 120 PSI 4 8 bolt ANSI
10" 050134000021 100 PSI 4 8 bolt ANSI

Downloadable Files
RIV Gladio 134
