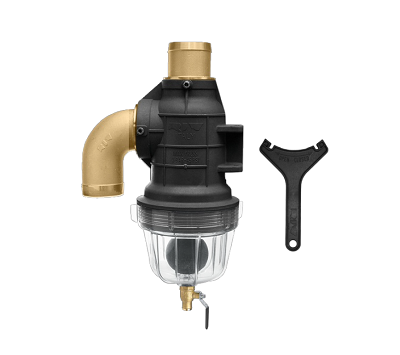

RIV Ocean Plastic Secondary Shutoff
RIV brand plastic secondary shutoff, Ocean series.
Details:
- • Body in an unbreakable and anticorrosion techno-polymer, with supporting ribs in the most stressed points
- • Double fixing bracket to guarantee a better stability and sturdiness against vibrations
- • This siphon is the biggest one on the market thanks to its 3,5 Liter capacity, that corresponds to 55% more than the other siphons of the same type
- • Cup made in a special transparent and shockproof techno-polymer
- • Anticorrosion stainless steel fixing screws
- • Equipped with a practical key for an easy opening and closing of the cup
- • Possible manometer connections

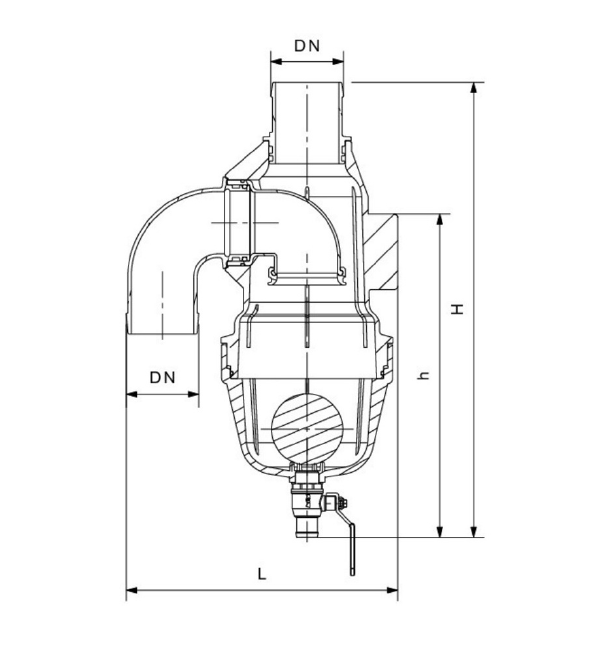

| Size |
DN |
Manufacturer Code |
H |
h |
l |
PN |
Kg/lbs |
Max CFM |
| 2" |
50 mm |
050337000053 |
525 mm/20.67" |
380 mm/14.96" |
276 mm/10.87" |
3bar - 45psi |
4.29 Kg/9.45 lbs |
250 |
| 3" |
75 mm |
050337000059 |
528 mm/20.79" |
380 mm/14.96" |
300 mm/11.81" |
3bar - 45psi |
5.04 Kg/11.10 lbs |
360 |
