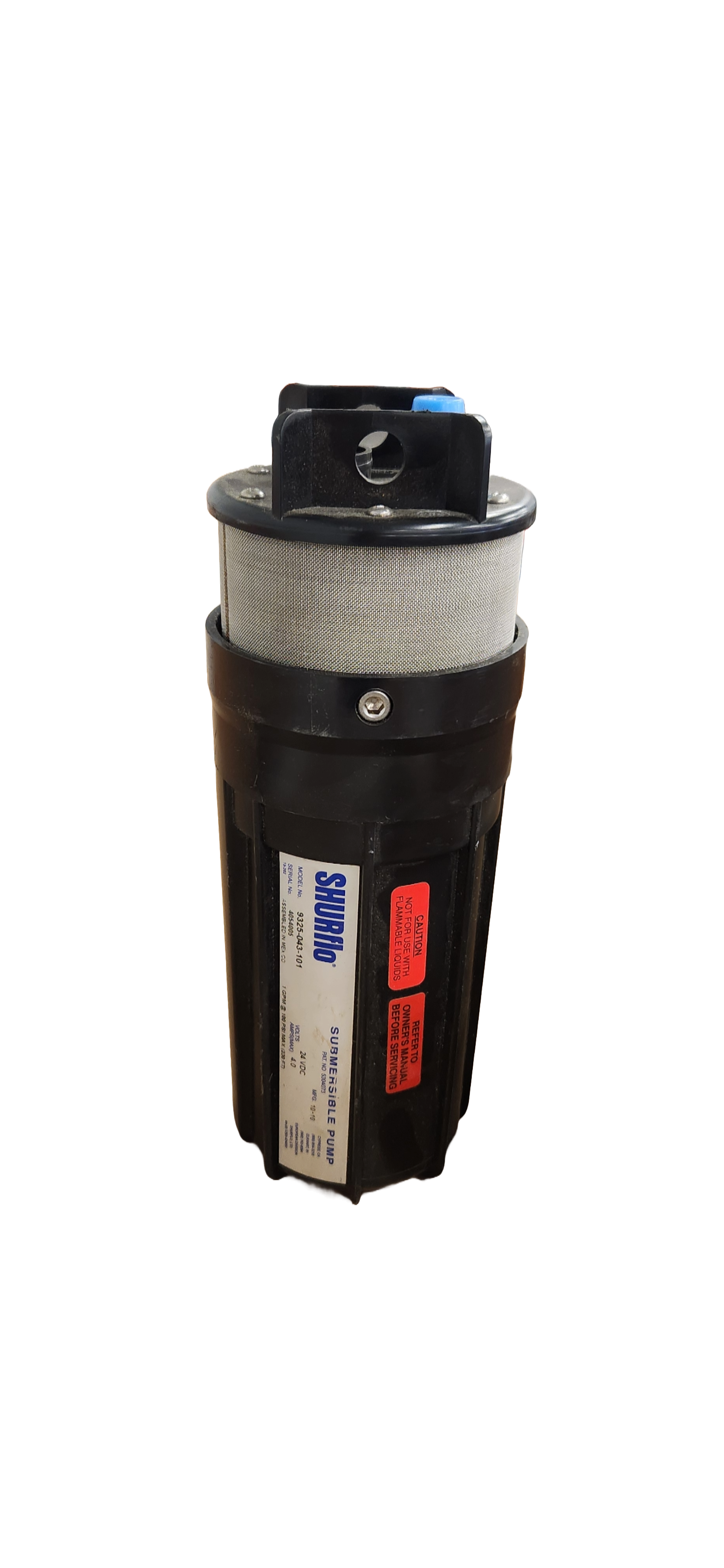

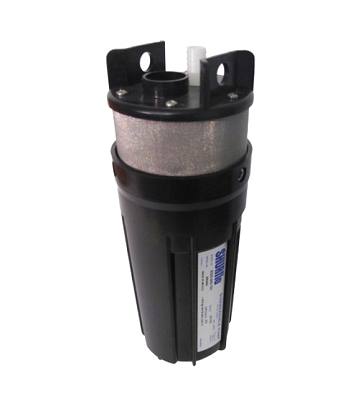

SHURflo 9300 Series 24 VDC Submersible Pump 9325-043-101
SHURFLO's 9300 Series Pumps are backed by 45 years of research and engineering experience. Solar-powered submersible pumps are suitable for wells with a 4 inch diameter or larger. Designed to be strong and yet lightweight. Wide-range of parts and kits for ease of rebuilding and repair.
Details:
- • Strong Construction, yet lightweight (2.7 kg, 6 lbs)
- • Corrosion-proof housing with stainlesssteel fasteners
- • Dry Running capability without pump damage
- • Internal Bypass Feature for pump protection
- • Long-life, 12 or 24 VDC Operation
- • Easily repaired in the field
- • State of the art solid diaphragm
Typical Applications:
- • Drinking water supply
- • Water supply for remote domestic usage
- • Water supply for solar thermal installation
- • Water supply for animals
- • Game parks and game farms
- • Solar micro irrigation (small family’s garden, small rural areas or green roof system)
- • Irrigation of fields and greenhouses
- • Pond management
Schematics:
- • H1 = Discharge head = vertical distance in feet / meters from ground level to level of water in elevated storage tank
- • H2 = Water level = vertical distance in feet / meters from level of water in well when pumping up to ground level
- • H3 = Submergence = vertical distance in feet / meters from level of water in well when pumping, to pump position in well (do not exceed 100 ft. / 30 m)
- • H = H1 + H2 + H3 = Total vertical lift (do not exceed 230 ft. / 70 m)
- • Drawdown = vertical distance in feet/meters from static water level to water level when pumping
| Specifications: |
|
| Model Number |
9325-043-101 |
| Pump Design |
Positive Displacement 3 Chamber Diaphragm Pump |
| CAM |
3.0 Degree |
| Motor |
Permanent Magnet, Thermally Protected |
| Voltage |
24 VDC Nominal |
| AMPS |
4.0 Maximum |
| Internal Bypass |
105-110 PSI Max. [7.2-7.5 BARS] |
| Maximum Lift |
230 Feet Maximum [70 m] |
| Maximum Submersion |
100 Feet Maximum [30 m] |
| Outlet Port |
½“ [12.7mm] Barbed Fitting for ½“ [12.7mm] I.D. Tubing |
| Inlet |
50 Mesh Stainless Steel screen |
| Materials |
High Strength Engineered Plastics, Stainless Steel Fasteners |
| Typical Application |
Potable Water Well Pump |
| Downloadable Files |
SHURflo 9300 Series Pump Information |
