Savatech Blocking Plug


Savatech Blocking Plug
Item Number: BLPLUG-S
Size/Color
Quantity

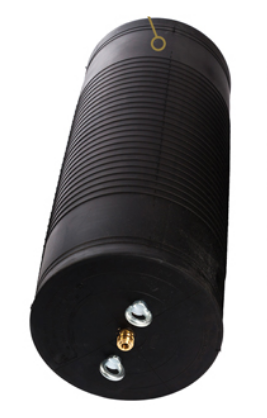

Savatech Blocking Plug

Plugs are reinforced with aramid cord and are noted for a wide application range. Flexible, they bend easily around tight corners or when inserted through the manholes.

Nominal Size Size Usage,
MIN. DIA. [mm] / [inch]
Size Usage,
MAX. DIA. [mm] / [inch]
Required Inflation Pressure
[bar] / [psi]
Deflated Plug,
Diameter [mm] / [inch]
Deflated Plug,
Rubber Length [mm] / [inch]
Product Weight
[kg] / [lbs]
Eye Bolt,
M Thread
Inflation Valve,
Thread Size
1.5"-2.8" / 40-70 40 / 1.5" 70 / 2.8" 2.5 / 36 35 / 1.4" 160 / 6.3" 0.2 / 0.4 NA R 1/4"
2.8"-6" / 70-150 70 / 2.8" 150 / 6" 2.5 / 36 68 / 2.7" 300 / 12" 0.4 / 0.9 NA R 1/4"
4"-8" / 100-200 100 / 4" 200 / 8" 2.5 / 36 92 / 3.6" 500 / 20" 1.35 / 3 M6 R 1/4"
6"-8" / 150-200 150 / 6" 200 / 8" 2.5 / 36 142 / 5.6" 350 / 14" 1.85 / 4 M8 R 1/4"
6"-12" / 150-300 150 / 6" 300 / 12" 2.5 / 36 142 / 5.6" 540 / 21" 2.6 / 6 M8 R 1/4"
8"-16" / 200-400 200 / 8" 400 / 16" 2.5 / 36 192 / 7.6" 600 / 24" 3.6 / 8 M8 R 1/4"
12"-21" / 300-525 300 / 12" 525 / 21" 2.5 / 36 272 / 10.7" 630 / 25" 6.8 / 15 M8 R 1/4"
14"-24" / 350-600 350 / 14" 600 / 24" 2.5 / 36 322 / 12.7" 830 / 33" 9.8 / 22 M10 R 1/4"
15"-30" / 375-750 375 / 15" 750 / 30" 2.5 / 36 342 / 13.5" 1050 / 41" 11.9 / 26 M10 R 1/4"
20"-40" / 500-1000 500 / 20" 1000 / 40" 1.5 / 22 472 / 18.6" 1150 / 45" 19.5 / 43 M10 R 1/4"
30"-60" / 750-1500 750 / 30" 1500 / 60" 1 / 15 600 / 23.6" 2300 / 91" 75 / 165 M10 2 × R 1/4"
32"-72" / 800-1800 800 / 32" 1800 / 72" 1 / 15 600 / 23.6" 3000 / 118" 106 / 234 M10 2 × R 1/4"
