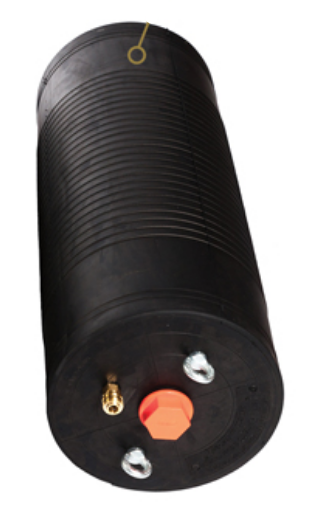

Savatech Bypass Plug
Savatech bypass plugs are reinforced with aramid cord and are noted for a wide application range. Flexible, they bend easily around tight corners or when inserted through the manholes.
| Nominal Size | Size Usage Range, MIN. DIA. [mm] / [inch] |
Size Use Range, MAX. DIA. [mm] / [inch] |
Required Inflation Pressure [bar] / [psi] |
Deflated Plug, Diameter [mm] / [inch] |
Deflated Plug, Rubber Length [mm] / [inch] |
Product Weight [kg] / [lbs] |
Eye Bolt, M Thread |
Inflation Valve, Thread Size |
Bypass Diameter (Female) |
|---|---|---|---|---|---|---|---|---|---|
| 2.8" - 6" / 70-150 | 70 / 2.8" | 150 / 6" | 2.5 / 36 | 68 / 2.7" | 300 / 12" | 1.7 / 3.7 | NA | R 1/4” | 1/2” |
| 4" - 8" / 100-200 | 100 / 4" | 200 / 8" | 2.5 / 36 | 92 / 3.6" | 500 / 20" | 2.7 / 6 | M6 | R 1/4” | 1” |
| 6" - 8" / 150-200 | 150 / 6" | 200 / 8" | 2.5 / 36 | 142 / 5.6" | 350 / 14" | 3.3 / 7 | M8 | R 1/4” | 1” |
| 6" - 12" / 150-300 |
150 / 6" | 300 / 12" | 2.5 / 36 | 142 / 5.6" | 540 / 21" | 4.3 / 10 | M8 | R 1/4" | 1" |
| 8" - 16" / 200 - 400 | 200 / 8" | 400 / 16" | 2.5 / 36 | 192 / 7.6" | 600 / 24" | 7 / 15 | M8 | R 1/4” | 2" |
| 12" - 21" / 300 - 525 | 300 / 12" | 525 / 21" | 2.5 / 36 | 272 / 10.7" | 630 / 25" | 12 / 27 | M8 | R 1/4" | 2" |
| 14" - 24" / 350 - 600 | 350 / 14" | 600 / 24" | 2.5 / 36 | 322 / 12.7" | 830 / 33" | 16 / 35 | M10 | R 1/4" | 2" |
| 15" - 30" / 375 - 750 | 374 / 15" | 750 / 30" | 2.5 / 36 | 342 / 13.5" | 1050 / 41" | 19.7 / 43 | M10 | R 1/4" | 2" |
| 20" - 40" / 500 - 1000 | 500 / 20" | 1000 / 40" | 1.5 / 22 | 472 / 18.6" | 1150 / 45" | 32.5 / 72 | M10 | R 1/4" | 2" |
| 24" - 48" / 600 - 1200 | 600 / 24" | 1200 / 48" | 1.5 / 22 | 574 / 22.6" | 1450 / 57" | 55.5 / 122 | M10 | 2 x R 3/8” | 4" |
| 30" - 60" / 750 - 1500 | 750 / 30" | 1500 / 60" | 1 / 15 | 600 / 23.6" | 2300 / 91" | 91 /201 | M10 | 2 x R 1/2” | 4" |
| 32" - 72" / 800 - 1800 | 800 / 32" | 1800 / 72" | 1 / 15 | 600 / 23.6" | 3000 / 118" | 117 / 258 | M10 | 2 x R 1/2” | 4" |
