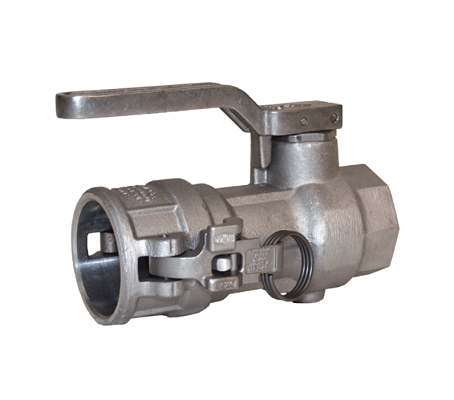

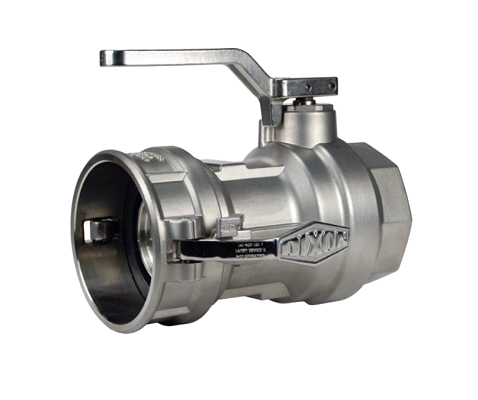

Type D Female Coupler x Female NPT Dry Disconnect - Aluminum
Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
Details:
- • Cam & Groove Style Dry Disconnect
- • Type D: female coupler/camlock x female NPT
- • Coupler has automatic closing poppet assembly
- • Heavy duty construction provides long service life
- • Stainless steel handle allows product exposure to corrosive chemicals or washdown service
- • Strong handle attachment prevents bending of crank assembly
- • Stainless steel internals
- • Heavy duty stainless steel handle, crank and link
- • Compatible with most other brands of cam and groove style dry disconnects
- • Fully interchangeable with Kamvalok (OPW trademark) style fittings
- • 2-1/2" Coupler x 2" Female NPT psi rating: 150 PSI at 70°F(21°C)
- • 4" Coupler x 3" Female NPT psi rating: 120 PSI at 70°F(21°C)
Notes:
- • Must be used with a DBA (Dry Break Cam & Groove) Style adapter for coupler to operate. Adapter sold separately.
- • Use with DBA style adapters
- • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size
