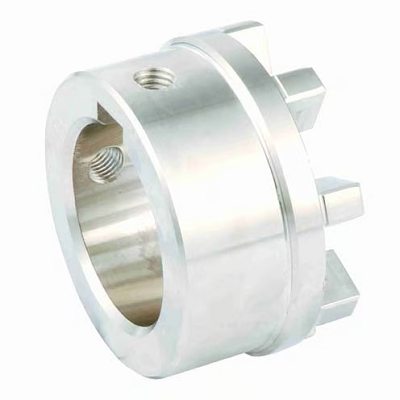

Wrapflex 20R PM Hub, 1-1/4" Bore
Rexnord R10 Series Straight Bore Style-Stock Bore (HSB) Hubs size(s) 20R with a 3.620-inch outside barrel diameter and 1.77-inch length for elastomeric couplings.
| Specifications: | |
|---|---|
| Series | Hubs |
| Screw clamp style | Set screw |
| Bore type | Finished with keyway & SS |
| Coupling size code | 20R |
| Coupling style | Close coupled |
| Coupling type | Elastomeric |
| Hub style | Standard |
| Hub type | R-Hub |
| Bore diameter | 1.2500 in |
| Hub barrel outside diameter | 3.6200 in |
| Hub end diameter | 4.016 in |
| Hub length | 2.3620 in |
| Keyway depth | 0.1250 in |
| Keyway width | 0.2500 in |
| Length through bore | 1.7700 in |
