Lightweight and flexible. Nitrile rubber static dissipating tube and static grounding wire provide maximum static resistance when connected to a grounded system. Construction makes it up to 50% lighter than the average rubber drop hose. External helix provides for easy drag. Rated for up to 40% aromatic content.
A lightweight and flexible solution. Featuring a nitrile rubber static dissipating tube and grounding wire for maximum static resistance. Perfect for gasoline gravity drops of naphtha, kerosene, oil, diesel, and ethanol blends with an external helix for easy handling.
- Length: 60 ft
- Inside Diameter: 2"
- Outside Diameter (OD): 2.68"
- Pitch: 0.39"
- Min. Bend Radius (at 72°F): 5"
- Working Pressure (at 72°F): 65 PSI
- Vacuum Rating (at 72°F): 29.8 in Hg
- Weight: 1.13 lbs/ft
- Elastomer: NBR
- Helix: Rigid PVC
- Bore: Smooth Bore
- Outer Profile: Corrugated OD

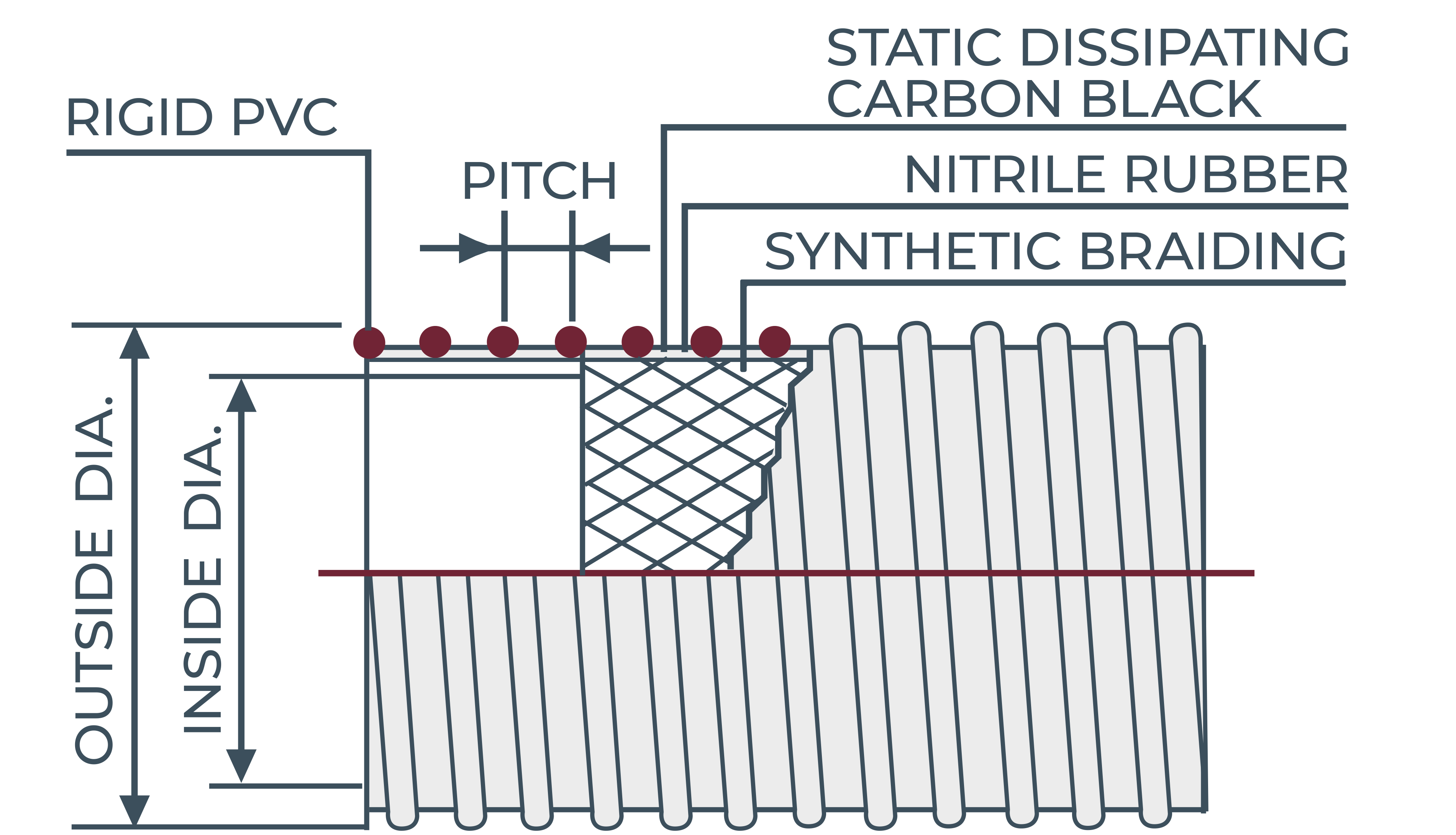

- Construction: Nitrile rubber static dissipating tube, rigid PVC helix, synthetic braiding, smooth bore, static grounding wire, corrugated O.D.
- Temperature Range: -30°F to 140°F
- Recommended Industries: Oil and Gas; Transportation
- Applications: General Tank Truck; Gasoline Terminal
- Compatible Accessories: Banding Coil; Banding Sleeve
