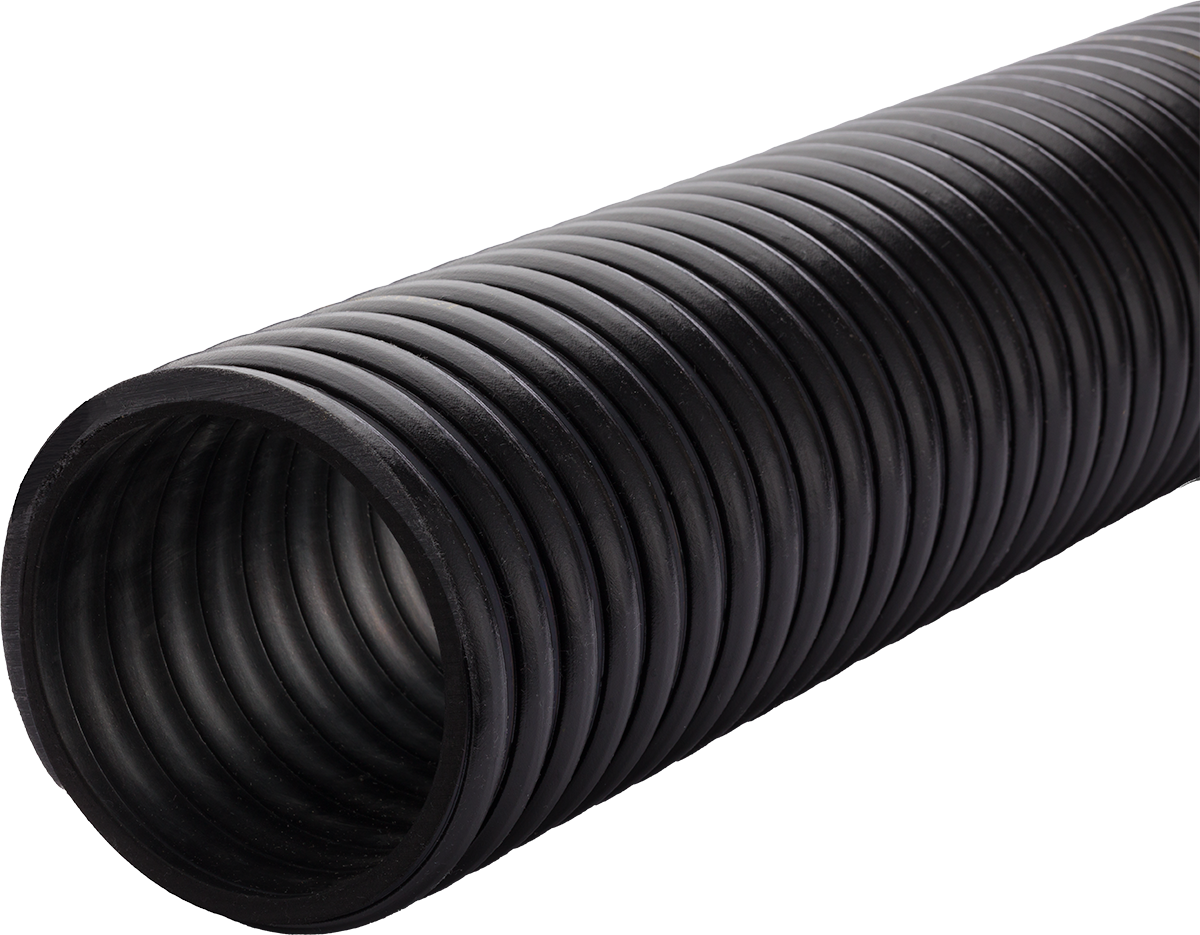

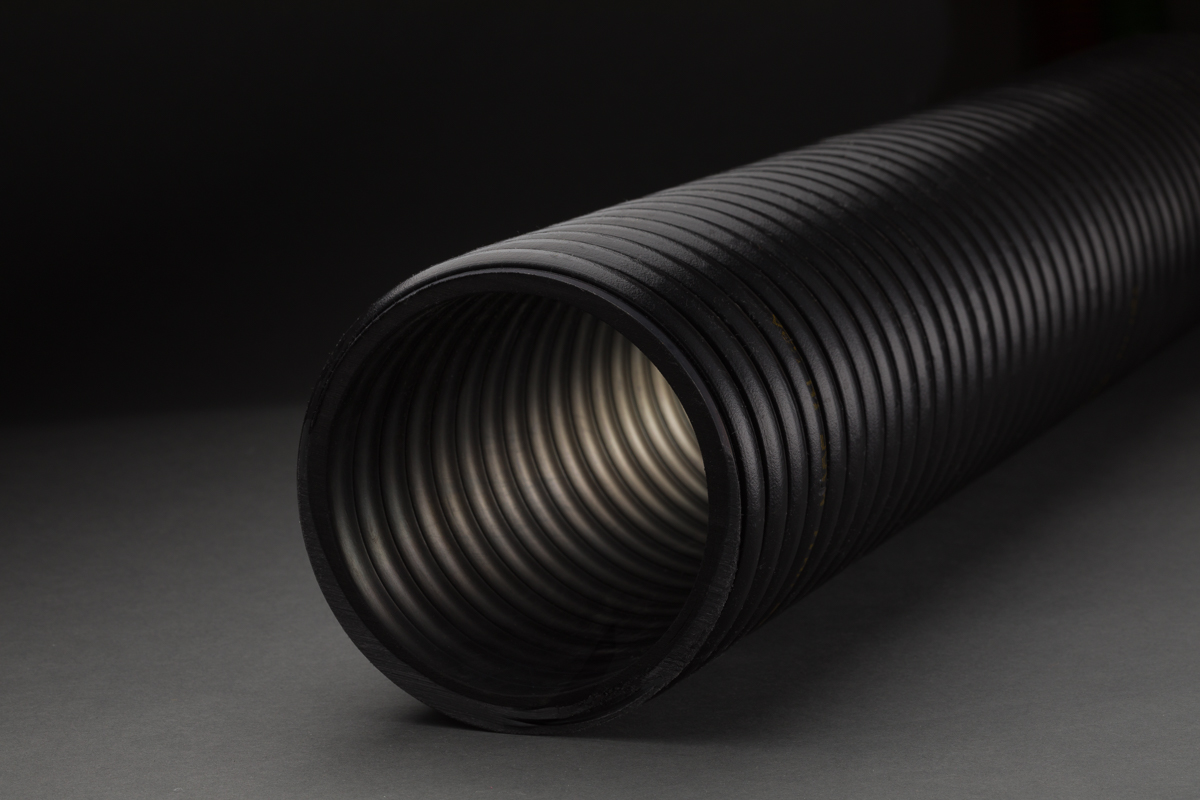

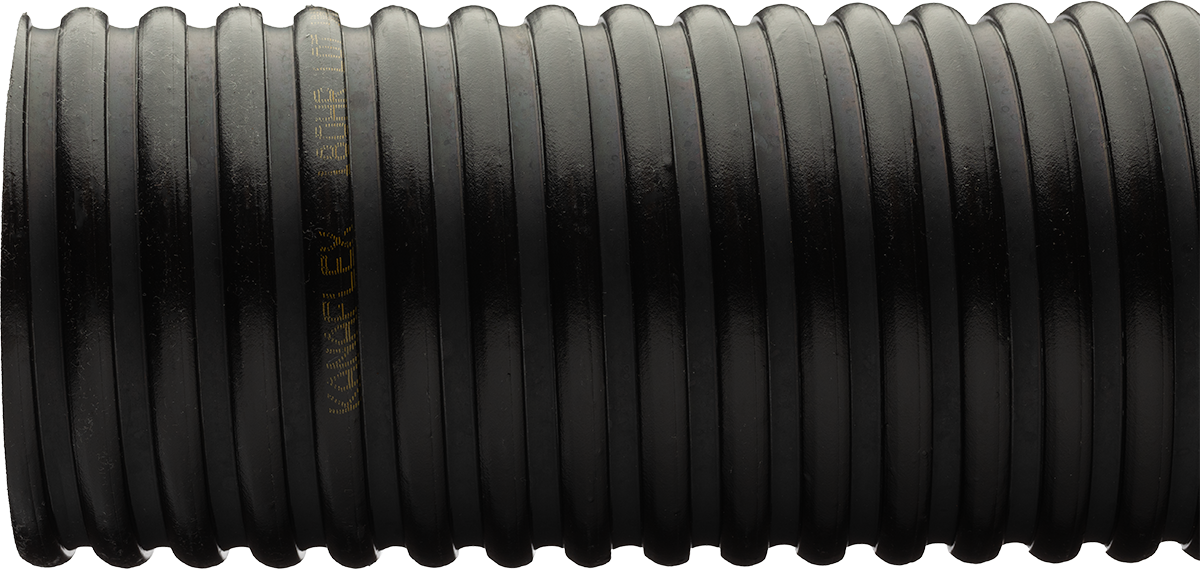

Lightweight and flexible suction hose designed to sustain temperatures up to 220°F. Integral wire helix can be grounded. External helix provides easy drag. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions.
An ideal solution for heavy-duty suction applications in high-temperature and abrasive environments. Lightweight, flexible, and designed to withstand temperatures up to 220°F, it ensures efficient material handling of fly ash, crushed rock, sand, pea gravel, or cement powder.
- Length: 100 ft
- Inside Diameter: 5"
- Outside Diameter (OD): 6.92"
- Pitch: 0.86"
- Min. Bend Radius (at 72°F): 9"
- Working Pressure (at 72°F): 30 PSI
- Vacuum Rating (at 72°F): 29 in Hg
- Weight: 3.06 lbs/ft
- Elastomer: EPDM
- Helix: Polyethylene
- Bore: Smooth Bore
- Outer Profile: Corrugated OD

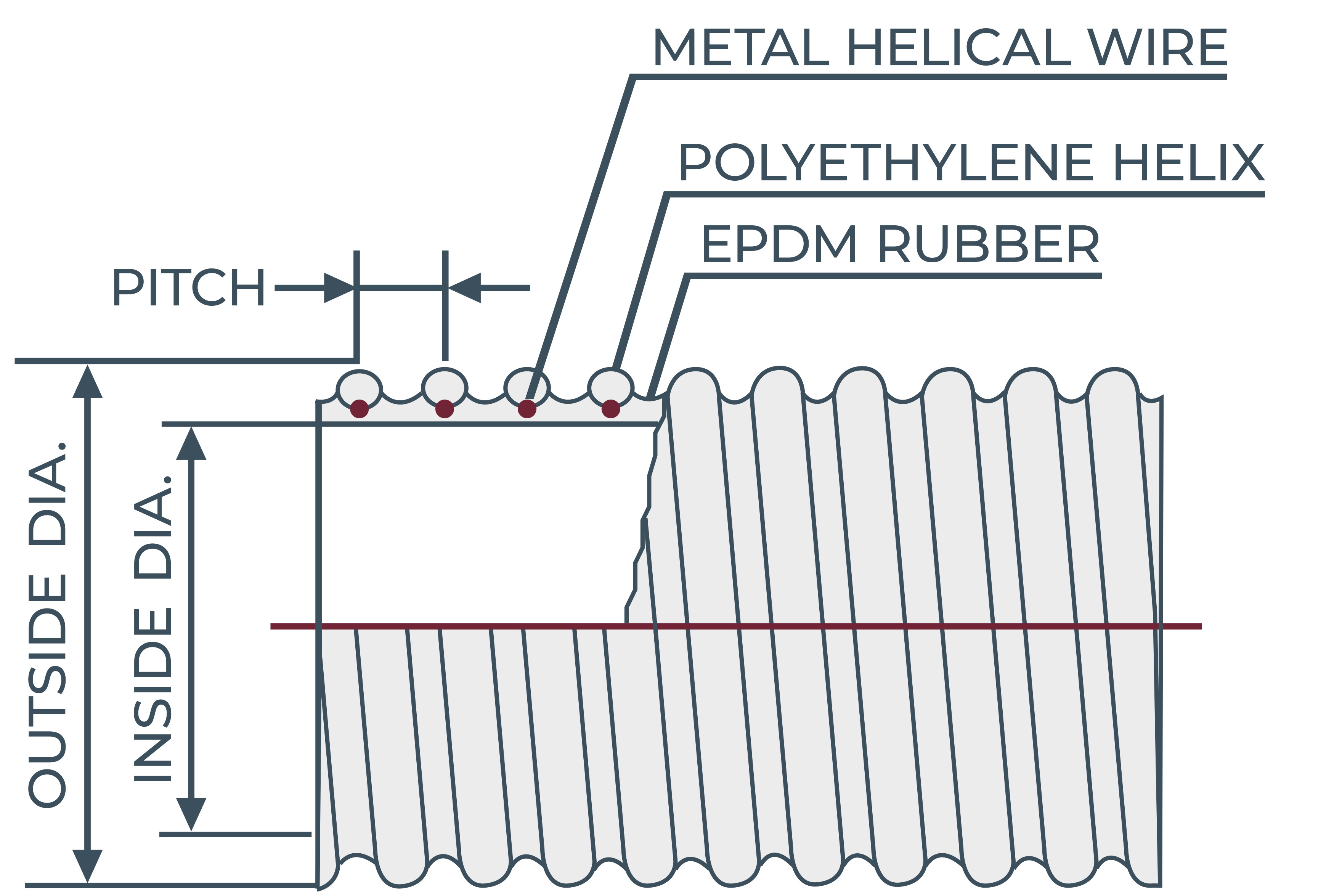

- Construction: EPDM rubber, polyethylene helix, metal helical wire, smooth bore, corrugated O.D.
- Temperature Range: -40°F to 220°F
- Recommended Industries: Industrial Plant Services; Oil and Gas; Roofing ; Environmental
- Applications: Fly Ash; Power Plant, Coal Dust; Sand Blast Recovery; Refinery, Catalyst Removal; Vacuum Truck ; Waste Management General Use
- Compatible Accessories: Powerlock Clamps; Banding Coil
