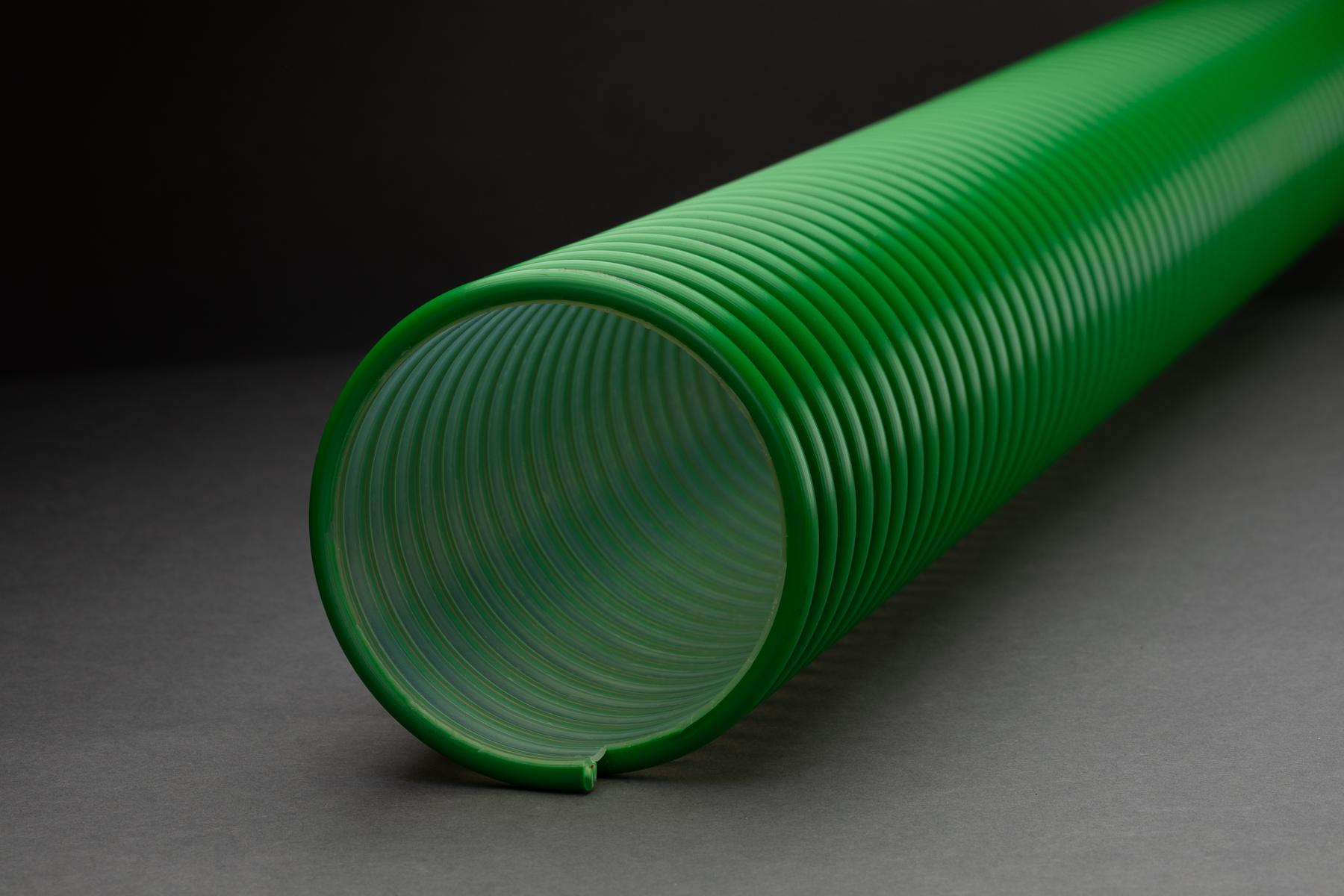

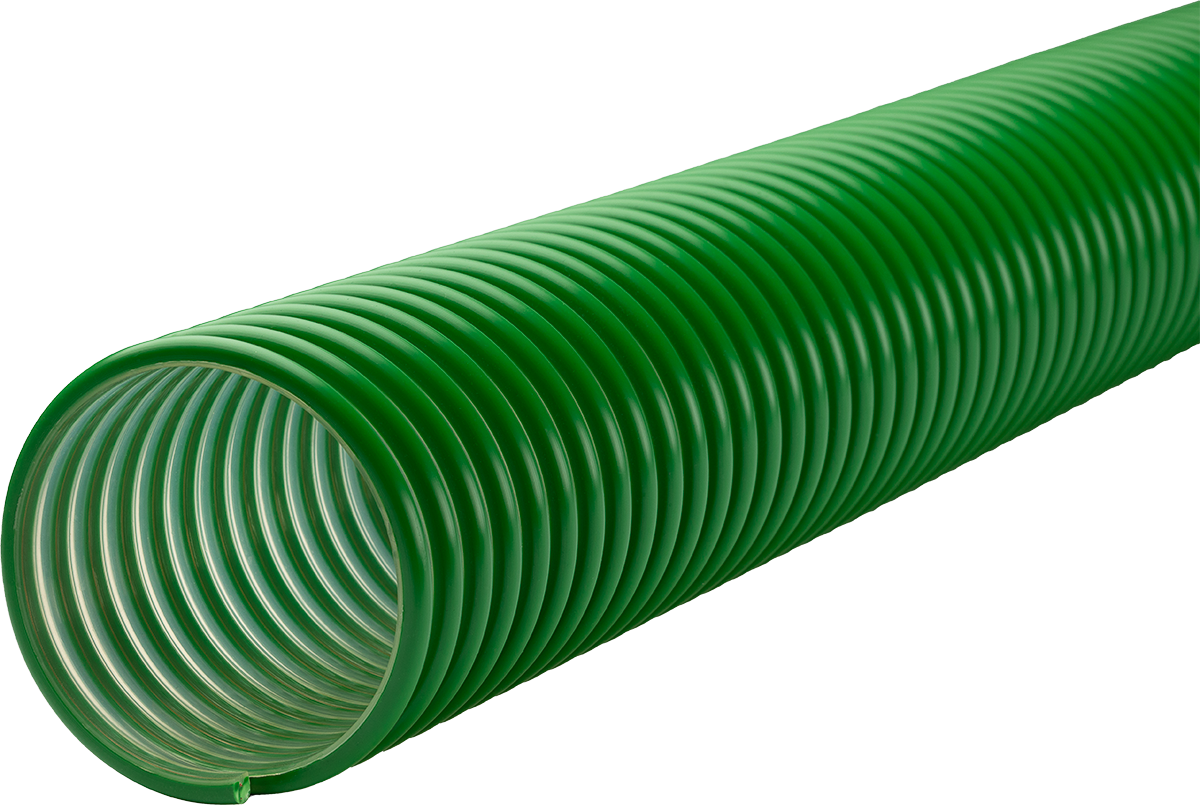

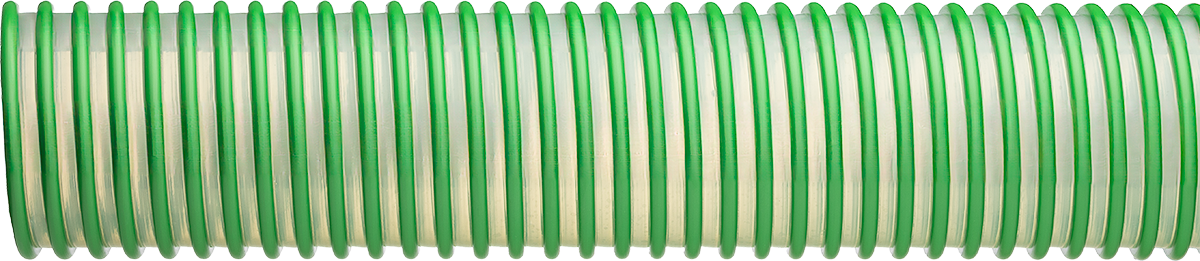

Lightweight and flexible in sub-zero temperatures. Clear polyurethane lined PVC tube provides abrasion resistance, permits visual check of material flow, prevents material build up, and provides quiet operation. Corrugated PVC O.D. with raised PVC helix for increased flexibility and easy drag.
Built for high-performance dry material transfer, KanaVac U delivers abrasion resistance, sub-zero flexibility, and strong vacuum power—perfect for grain vacs and industrial vac systems.
- Length: 60 ft
- Inside Diameter: 6"
- Outside Diameter (OD): 5.9"
- Pitch: 0.8"
- Min. Bend Radius (at 72°F): 6"
- Working Pressure (at 72°F): 6 PSI
- Vacuum Rating (at 72°F): 19 in Hg
- Weight: 1.85 lbs/ft
- Elastomer: Polyurethane
- Helix: Rigid PVC
- Bore: Smooth Bore
- Outer Profile: Corrugated OD

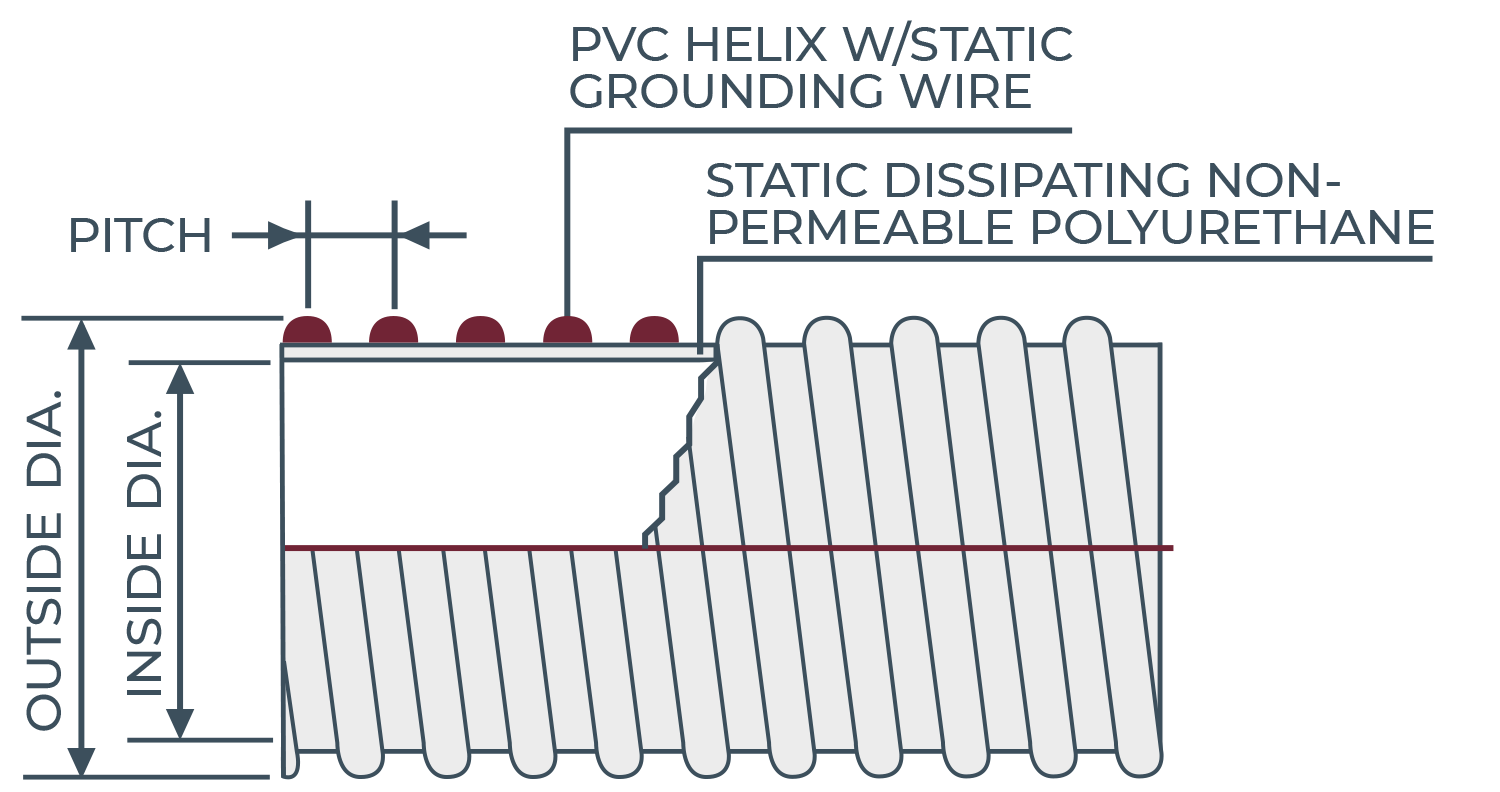

- Construction: Flexible polyurethane tube with rigid PVC helix, smooth bore, PVC corrugated O.D., no direction required, smooth bore, PVC corrugated O.D. with copper grounding wire.
- Temperature Range: -54°F to 140°F
- Recommended Industries: Agriculture, Construction, Industrial Plant Services
- Applications: Ag General Use, Air Seeder, Grain Vac, Industrial Plant Services General Use, Plastic Processing, Pneumatic Conveying, Vacuum Truck
