Nitrile rubber static dissipating tube and static grounding wire provide maximum static resistance when connected to a grounded system. The smooth bore allows for precise flow because no irregularities in the wall can cause interruptions. External helix provides easy drag.
A specialized solution for vapor recovery. Featuring a nitrile rubber static dissipating tube, grounding wire, and smooth bore for precise flow. External helix ensures easy drag.
- Length: 60 ft
- Inside Diameter: 4"
- Outside Diameter (OD): 4.57"
- Pitch: 0.65"
- Min. Bend Radius (at 72°F): 5"
- Working Pressure (at 72°F): 10 PSI
- Vacuum Rating (at 72°F): 29.8 in Hg
- Weight: 1.7 lbs/ft
- Elastomer: Nitrile Rubber
- Helix: Rigid PVC
- Bore: Smooth Bore
- Outer Profile: Corrugated OD

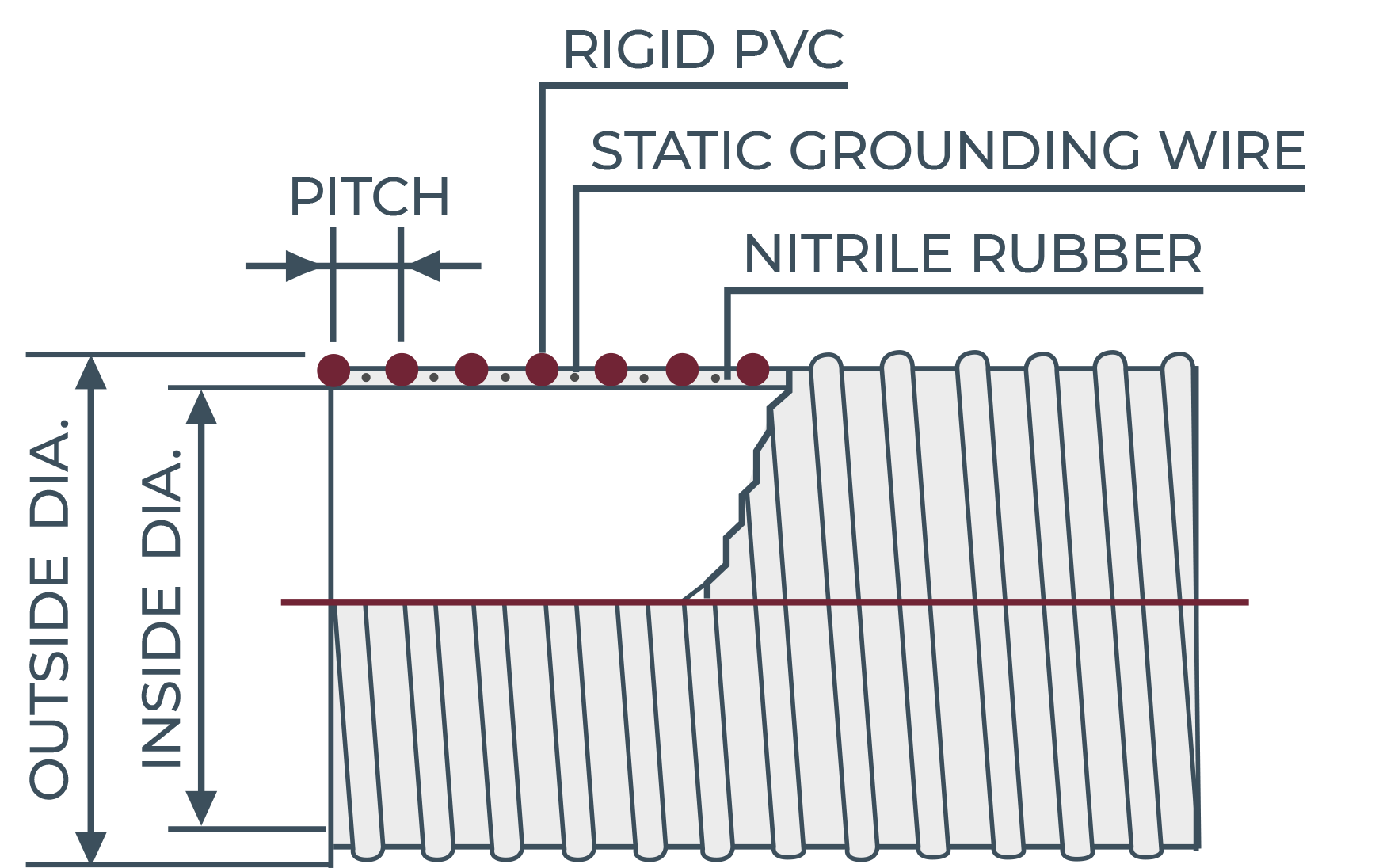

- Construction: Nitrile rubber, rigid PVC helix, smooth bore, corrugated O.D., static grounding wire
- Temperature Range: -40°F to 140°F
- Recommended Industries: Oil and Gas; Transportation
- Applications: General Tank Truck; Gasoline Terminal
- Compatible Accessories: Powerlock Clamps; Banding Coil
