Industrial hoses facilitate the transfer of fluids, gases, and granular materials across countless sectors. While material composition and pressure ratings often dominate selection criteria, the physical flexibility of the assembly remains equally critical. A fundamental metric governing this flexibility is the hose bend radius. Proper adherence to hose bend radius specifications ensures system longevity, operational safety, and efficient flow characteristics. Ignoring these parameters frequently results in premature failure, flow restriction, or hazardous leaks.
The minimum bend radius represents the smallest radius at which a hose can bend without sustaining damage or compromising its lifespan. Manufacturers calculate this value to prevent kinking, flattening, or excessive stress on the reinforcement layers. When you measure the bend radius, you measure to the inside curvature of the bend, not the centerline or the outside edge.
Engineers specify this limit to protect the structural integrity of the hose wall. If an operator forces a hose into a curve tighter than this specification, the reinforcement materials—whether wire helix, textile braid, or synthetic weave—may separate or fatigue. This separation weakens the hose, creating potential failure points under pressure.
Technicians sometimes confuse bend radius with bend diameter. These terms relate but describe different measurements. The bend radius measures the distance from the center of the imaginary circle, which the bent hose forms, to the inside edge of the hose. The bend diameter measures the distance across that entire imaginary circle, effectively double the radius.
Understanding this distinction prevents installation and usage errors. If a specification sheet lists a minimum bend radius of 10 inches, the hose requires a space that accommodates a 20-inch diameter circle to make a 180-degree turn. Confusing these two values leads to installations that force the hose into tighter bends than the design permits.
Correctly calculating the necessary hose length for a specific bend angle prevents strain on the fittings and the hose itself. The formula relies on the bend radius and the angle of the bend. For a 90-degree bend, the minimum length of hose required for the bent section equals the bend radius multiplied by 1.57.
This calculation only accounts for the bent portion. You must add the length of the straight sections required at each end for the couplings and a neutral length to absorb pressure spikes. Failing to include sufficient length results in tensile stress on the hose assembly, which often pulls fittings loose or causes the hose to tear near the ferrule.
The force-to-bend rating indicates how much physical force a user must apply to bend a hose to a specific radius. This factor proves vital in dynamic applications where machinery moves or where operators manually handle the hose. A hose with a high force-to-bend rating resists bending and transmits significant load to the connection points.
In robotic or automated systems, high stiffness can overload servo motors or actuators. For manual handling, a stiff hose increases operator fatigue. Manufacturers modify force-to-bend characteristics by altering the reinforcement construction or using more flexible polymer compounds in the tube and cover.
Exceeding the minimum hose bend radius causes immediate and long-term issues. The most obvious result involves kinking. A kink restricts the internal diameter, drastically reducing flow rate and increasing turbulence. This turbulence generates heat and accelerates erosion of the inner tube.
Beyond flow restriction, over-bending places excessive tension on the outer curve and compression on the inner curve of the hose. This mechanical stress causes wire reinforcement to fatigue and snap. In textile-reinforced hoses, the braid angle shifts, reducing the hose's ability to withstand internal pressure. These structural compromises often lead to sudden bursts or pinhole leaks.
Ambient and internal temperatures significantly alter a hose's flexibility and its effective bend radius. Thermoplastic and rubber materials generally stiffen in cold environments. A hose that bends easily at 70°F (21°C) may become rigid and brittle at -20°F (-29°C). Forcing a cold hose to bend to its standard minimum radius can crack the cover or the inner tube.
Conversely, high temperatures soften hose materials. While this increases flexibility, it may reduce the mechanical support the hose wall provides, making it more susceptible to kinking at tighter radii. Technical data sheets often provide derating factors or specific bend radius adjustments for extreme temperature ranges.
For applications involving negative pressure, the bend radius directly correlates to the hose's vacuum rating. Bending a hose introduces ovality, or flattening, to the cross-section. As the hose flattens, its structural resistance to vacuum collapses decreases. A hose that maintains full vacuum rating when straight might collapse under partial vacuum if bent near its minimum radius.
Manufacturers often incorporate a helical wire reinforcement in a suction and discharge hose to maintain cross-sectional shape during bending. This helix prevents the hose from flattening, allowing it to maintain its vacuum rating even when routed through tight curves.
Technical specifications often distinguish between static and dynamic bend radii. The static bend radius applies to a hose installed in a fixed position with no movement. The dynamic bend radius applies to applications where the hose flexes, surges, or vibrates during operation.
The dynamic limit is almost always larger (less tight) than the static limit. Continuous flexing fatigues the reinforcement layers. Requiring a hose to flex repeatedly at its absolute minimum static radius accelerates this fatigue. Engineers apply a safety factor, typically doubling the static radius, to determine the appropriate dynamic bend radius.
Verifying bend radius in an existing installation requires simple geometry. To check a 90-degree bend, measure the distance from the start of the bend to the outside of the hose at the widest point of the turn. Then measure the hose's outer diameter (OD).
A practical field method involves measuring the distance between the two parallel straight sections of a 180-degree loop. Subtract the hose OD from this distance to find the diameter of the bend, then divide by two to determine the radius. Comparing this field measurement against the manufacturer’s specification confirms whether the installation complies with safety standards.
Bend restrictors are external accessories designed to prevent a hose from bending beyond its limit at the coupling interface. Stress concentrates heavily where the flexible hose meets the rigid metal fitting. Without protection, the hose tends to bend sharply at this junction.
Restrictors, often made of PVC, steel coils, or rubber, extend the rigid section slightly and force the bend to occur further down the hose assembly. They distribute the bending stress over a longer arc. While they do not change the fundamental bend radius of the hose itself, they enforce compliance with that radius at the most critical failure point.

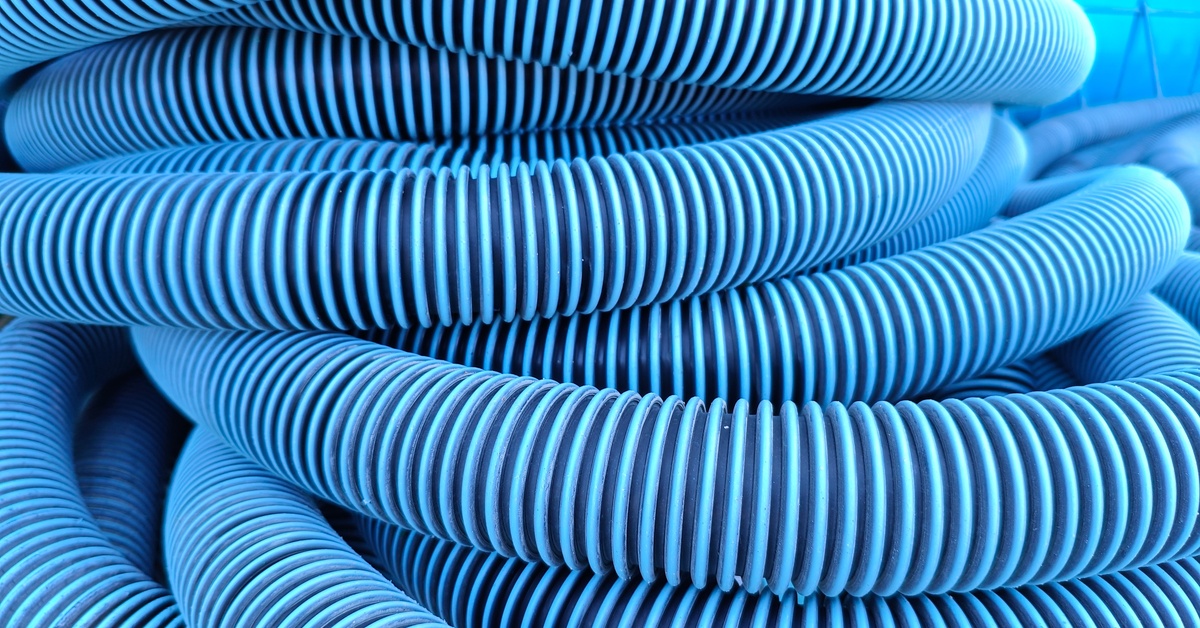

When equipment design demands a tighter bend radius than standard hoses allow, selecting the correct hose construction solves the problem. Corrugated metal hoses or hoses with corrugated covers offer superior flexibility compared to smooth-bore rubber hoses.
Additionally, manufacturers engineer specific "half-bend radius" hoses using advanced reinforcement braids and high-performance elastomers. These specialized hoses permit routing through compact machinery and tight hydraulic circuits without sacrificing pressure capability or lifespan. Proper selection during the design phase eliminates the need for potentially hazardous workarounds later.
