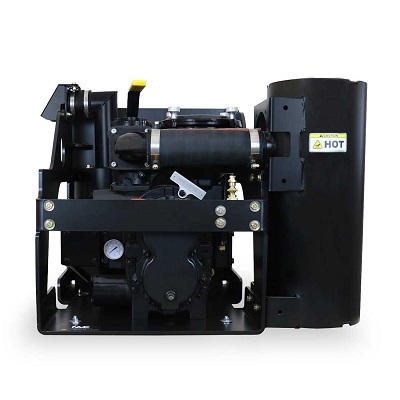

B500 Silencer Pak Includes:
- B500 high vacuum tri-lobe blower with 4-way vacuum pressure change over valve
- Oil-less operation
- Exhaust air silencer which can be mounted in any position
- Ballast air silencer
- 1:2 speed increasing right angle gearbox
- Clockable gearbox bracket for easy matching of driveline angles
- E20 coupler set
- All elbows, fittings, and high temp hose are factory connected
- Flows up to 431 CFM
- Silencer Pak approximate weight: 702 lbs
- (L) 39-5/16 (W) 32-3/4 (H) 26-11/16
- Designed, built, and supported in the USA
B500 Blower Specifications:
For more moderate industry applications, National Vacuum Equipments new entry level vacuum blower the B500 tri-lobe blower is the ideal choice. Its designed to be used with a 3 plumbed system with a maximum recommended operation of 2400 RPM and comes with better noise limiting features.
- Proven air injection cooling
- Oil-less operation
- Built-in vacuum/pressure change over valve
- Easily maintainable pre filter
- Easily accessible grease points
- Continuous duty to 24 HG
- Highly efficient three lobe rotor design
- Blower flush kit included
- Designed, built, and supported in the USA
| Specifications: |
|
| Operating range - RPM |
2400 |
| Maximum airflow |
431 CFM |
| Maximum horsepower |
30 HP |
| Maximum vacuum |
24" Hg |
| Maximum pressure |
15 PSI |
| Porting size |
3" |
| Shaft size (5/16" key) |
1-3/8" |
| Blower dimensions |
(L) 24 (W) 19-15/16 (H) 24-3/16 |
| Approximate weight |
370 lbs |
View the products catalog HERE
View the products brochure HERE
View the owner's manual HERE
| Vacuum Pump Oil |
Pump Manufacturer |
| ISO 32 |
Masport (Winter) |
| ISO 68 |
Battioni, NVE, Masport (All Season) |
| ISO 100 |
Moro, Masport (Summer) |
| ISO 150 |
Jurop, Fruitland, NVE |
