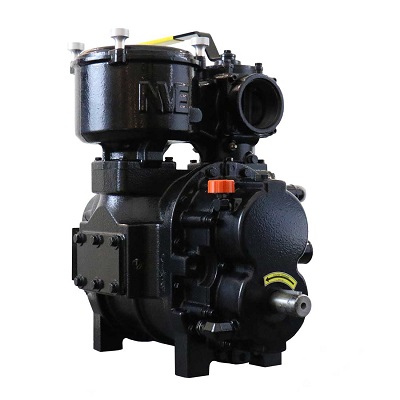

B500 Blower With Low Shaft and Manifold


B500 Blower With Low Shaft and Manifold
Item Number: B500BLOWER  CW
Size/Color
Quantity


Must be shipped via Freight! See our Freight Terms and Conditions HERE

B500 Blower With Low Shaft and Manifold Specifications:

For more moderate industry applications, National Vacuum Equipment’s new entry level vacuum blower – the B500 tri-lobe blower – is the ideal choice. It’s designed to be used with a 3” plumbed system with a maximum recommended operation of 2400 RPM and comes with better noise limiting features.

  • • Proven air injection cooling
  • • Oil-less operation
  • • Built-in vacuum/pressure change over valve
  • • Easily maintainable pre filter
  • • Easily accessible grease points
  • • Continuous duty to 24” HG
  • • Highly efficient three lobe rotor design
  • • Blower flush kit included
  • • Designed, built, and supported in the USA
Specifications:
Operating range - RPM 2400
Maximum airflow 431 CFM
Maximum horsepower 30 HP
Maximum vacuum 24" Hg
Maximum pressure 15 PSI
Porting size 3"
Shaft size (5/16" key) 1-3/8"
Blower dimensions (L) 24” (W) 19-15/16” (H) 24-3/16”
Approximate weight 370 lbs


View the products catalog HERE

View the products brochure HERE

View the owner's manual  HERE



Vacuum Pump Oil Pump Manufacturer
ISO 32 Masport (Winter)
ISO 68 Battioni, NVE, Masport (All Season)
ISO 100 Moro, Masport (Summer)
ISO 150 Jurop, Fruitland, NVE
