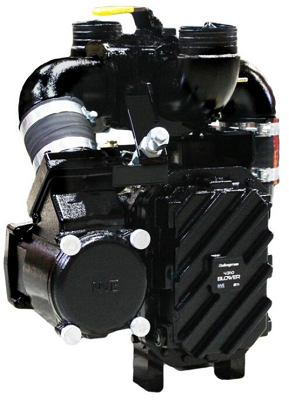

Challenger 4310 Blower With Manifold and Ballast Specifications:
The 43 Series are heavy-duty tri-lobe blowers, designed to be used in liquid waste pumping applications where extended operation is desired. This pump is dependable for applications in the industrial waste industry and many more. You can count on the 43 Series vacuum blower to give you years of reliable service.
| Specifications: | |
|---|---|
| Airflow - free air | 940 CFM at 4500 RPM |
| Full vacuum | (Varies depending on RPM, ambient temperature, altitude, and time running) |
| Maximum intermittent pressure | 15 PSI |
| Operating speed - recommended | 4000 RPM - 4500 RPM (4500 RPM for intermittent use ONLY) |
| HP required @ 27" HG | 51.4 (4000 RPM) - 58 (4500 RPM) |
| HP required @ 10 PSI | 39.7 (4000 RPM) - 44 (4500 RPM) |
| HP required @ 15 PSI | 65.5 (4000 RPM) |
| Porting Size | 4" |
| Shaft size (3/8" key) | 1-1/2" |
| Blower dimensions | (L) 27-11/16” (W) 23-7/16” (H) 26-15/16” |
| Approximate weight | 456 lbs |
View the products catalog HERE
View the products brochure HERE
View the owner's manual HERE
View the maintenance manual HERE
View the oil change manual HERE
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
