NVE 607 Pump Specifications:

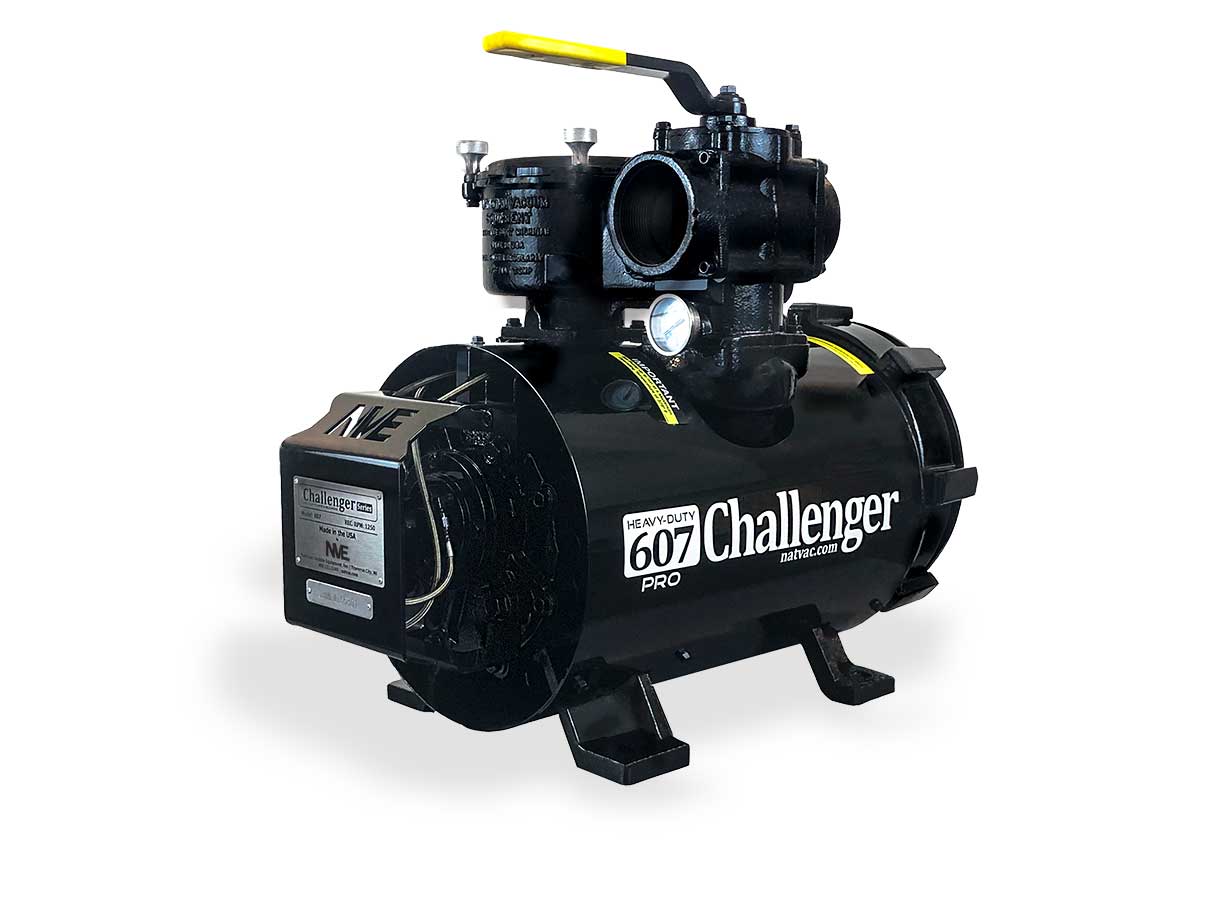

Super power, super productivity. The NVE Challenger 607 PRO Heavy Duty Vacuum Pump is one of the toughest rotary vane pumps. Built with a 4-way valve that allows you to change from vacuum to pressure, its dependable and durable design allows for smooth working, even in the most demanding industry applications.
| Specifications: | |
|---|---|
| Air flow - free air | 380 CFM |
| Full vacuum | 29" Hg |
| Maximum pressure | 30 PSI |
| Operating range - RPM | 1250 |
| HP required @ vacuum | 25 |
| HP required @ 20 PSI | 28 |
| Porting size | 3" |
| Shaft size (3/8" key) | 1-1/2" |
| Pump dimensions |
29-5/8" (L) x 14-9/16" (W) x 32-11/16" (H) |
| Approximate weight | 390 lbs |
| Vacuum Pump Oil | Pump Manufacturer |
| ISO 32 | Masport (Winter) |
| ISO 68 | Battioni, NVE, Masport (All Season) |
| ISO 100 | Moro, Masport (Summer) |
| ISO 150 | Jurop, Fruitland, NVE |
